ZJTEX supply to the world market with its full range of AC external rotor motors with diameter 72mm,92mm,and 102mm,both open frame and enclosed frame. ZJTEX Supplied "Morrill" Axial fan with external rotor motor ,with fan diameter from 300mm,350mm,400mm,450mm up to new developed 500mm. ZJTEX supplied AC tangential fan diameter 60mm or 80mm,different length available with enclosed frame or open frame external rotor motor.

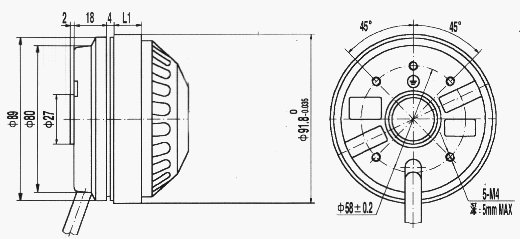

1.Motor

Typical motor:


Part number	Voltage	Frame type	Poles	Insulation class	Output power	PDF file
01765	115V,60HZ	Enclosed	4	B	40	01765
01766	115V,60HZ	Enclosed	4	F	90	01766
92ERM-4-50A	230V,50HZ	Opened	4	B	50	92ERM-4-50A



2."Morrill" Axial Fan (300-500MM)

TYPE	Voltage	Frequency	Airvolume	Speed	Power Input	Current	Capacitor	Noise level	Adm.Amb.  Temperature	Weight
R09E-3030-4T	380V	50HZ	1900	1380	65W	0.17A		59	55	3
R09E-3030-4M	220V	50HZ	1900	1380	73W	0.32A	4/450	59	45	3
R11E-3530-4T	380V	50HZ	2950	1380	115W	0.33A	-	62	50	4.7
R11E-3530-4M	220V	50HZ	2950	1380	130W	0.58A	4/450	62	40	4.7
R11E-4030-4T	380V	50HZ	3800	1380	150W	0.45A	-	69	55	5.7
R11E-4030-4M	220	50HZ	3800	1380	160W	0.72A	8/450	70	50	5.7
R11E-4530-4T	380	50HZ	5100	1350	200W	0.68A	-	72	45	6.7
R11E-4530-4M	220	50HZ	5100	1350	245W	1.1A	8/450	72	40	6.7

3.Backward Centrifugal Fan


ZJTEX supply backward motorized impeller from 133mm diameter to 280mm diameter.Bigger diameter with 102mm diameter motor is also available for specific requirement.

Specifications:

Model	Air volume(m^3/h)	Speed (rpm)	Input power(w)	capacitor(uF)	Current(A)	Noise(dB)
ZT133/91	260	2800	30	1.5	0.14	53 max
ZT180/55	570	2300	82	2	0.36	63 max
ZT220/71	860	2600	85	3	0.38	73 max
ZT225/85	1050	2700	115	3.0	0.51	72 max
ZT250/99	1510	2700	170	5	0.75	76 max
ZT280/125	1390	1420	70	2.5	0.31	62 max

(Note:ZT133/91 means wheel diameter 133,wheel height 91mm)

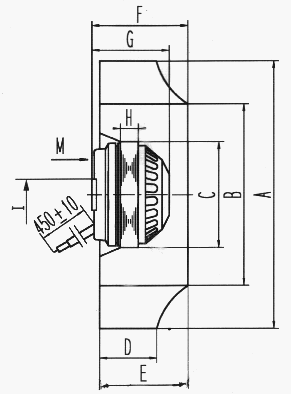

Dimensions:

Model	A	B	C	D	E	F	G	H	I
ZT133/91	dia133	90.5	72	43	59.5	91	53.5	15	----
ZT180/55	dia180	131	92	30	47	54.4	60	12	dia 27
ZT220/71	dia220	159	92	45	63	71	63	15	dia 27
ZT225/85	dia225	153	92	50	75	85	82.5	35	dia 27
ZT250/99	dia252	172	92	56	84.3	99	97.5	42	dia 27
ZT280/125	dia280	191	92	50	81.6	125	97.5	42	dia 27

4.Forward Centrifugal Fan

Forward Centrifugal Fan with external rotor motor(Outer diameter from 120 to 180mm),metal wheel

Download detail in DWF format

Download detail in PDF format

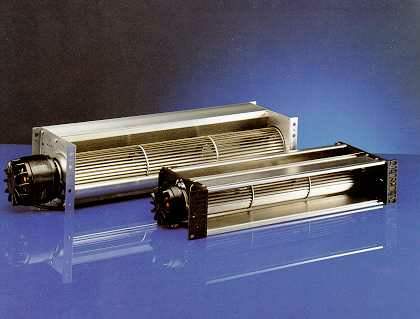

5.Tangential fan

Diameter 60mm or 80mm fan.
Using 72mm or 92mm enclosed or opened frame external rotor motor.
Flexible length.

6.Double shaft external rotor motor(power range from 180w to 22KW)


YDW Series three phase

YYDW Series single phase

YBDW Series three phase explosion proof
