YYDW
Series low noise, external-rotor and
single-phase induction motors are of
totally enclosed and fan-cooled type. It obtains
the quality of low noise, low vibration and
turning smoothly. Owing to its soft
characteristic, the stepless speed variety of
the motor is available to adapt to the
requirements of system load changes by voltage
modulations. Featuring fixed shaft and external
rotor, the frame of motor can be connected to
impellers directly. It is the most ideal power
source for horizontal double inhaling
centrifugal ventilators of fans, and vertical
roof centrifugal ventilators or fans alike, and
is widely used for various ventilating devices.

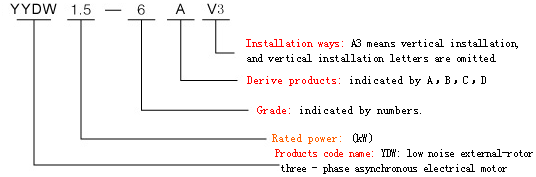

Type Illustration
Environmental
situation
A: altitude must be below 1000m.
B: Environmental temperature changes with season
alternating, but it should not beyond 40℃.
C: relative humidity should not be over 90%(25℃)
rated parameter |
Rated
Voltage: 220V Rated
Power:50Hz Working
style：(S1) Insulated
Level：B、F
Safety：IP44、IP54 |
Mounting

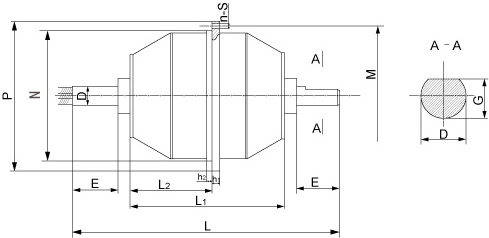

dimensions & Overall dimensions
|
Type
|
Mounting dimensions
|
Overall dimensions
|
|
M
|
N
|
n-S
|
D
|
E
|
G
|
P
|
L
|
L1
|
L2
|
h1
|
h2
|
|
YYDW0.12-6
|
Φ146
|
|
6-M6
|
|
28
|
|
Φ162
|
202
|
140
|
70
|
20
|
|
|
YYDW0.18-6
|
Φ166
|
|
45
|
Φ180
|
258
|
154
|
77
|
12
|
|
YYDW0.25-6
|
258
|
164
|
82
|
|
YYDW0.37-6
|
278
|
174
|
87
|
|
YYDW0.55-6
|
40
|
300
|
213
|
107
|
|
YYDW0.12-4
|
Φ46
|
|
6-M6
|
|
28
|
|
Φ162
|
202
|
140
|
70
|
20
|
10
|
|
YYDW0.18-4
|
|
YYDW0.25-4
|
Φ166
|
|
6-M6
|
45
|
Φ180
|
258
|
154
|
77
|
12
|
|
YYDW0.37-4
|
258
|
164
|
82
|
|
YYDW0.55-4
|
40
|
278
|
181
|
92
|
Technical
Data
|
Type
|
Output
(kW)
|
Speed
(r/min)
|
Current
(A)
|
Efficiency
(%)
|
Power factor
(cosΦ)
|
Capacitor
(μF)
|
Noise LP
dB(A)
|
|
YYDW0.12-6
|
0.12
|
900
|
1.14
|
53
|
0.90
|
4
|
50
|
|
YYDW0.18-6
|
0.18
|
920
|
1.54
|
56
|
0.95
|
6
|
50
|
|
YYDW0.25-6
|
0.25
|
920
|
1.84
|
65
|
0.95
|
8
|
50
|
|
YYDW0.37-6
|
0.37
|
920
|
2.90
|
61
|
0.95
|
12
|
50
|
|
YYDW.55-6
|
0.55
|
920
|
4.39
|
60
|
0.95
|
12
|
50
|
|
YYDW0.12-4
|
0.12
|
1350
|
0.96
|
60
|
0.95
|
4
|
53
|
|
YYDW0.18-4
|
0.18
|
1350
|
1.44
|
60
|
0.95
|
4
|
53
|
|
YYDW0.25-4
|
0.25
|
1400
|
1.90
|
63
|
0.95
|
6
|
53
|
|
YYDW0.37-4
|
0.37
|
1400
|
2.81
|
63
|
0.95
|
8
|
53
|
|
YYDW0.55-4
|
0.55
|
1400
|
4.0
|
65
|
0.95
|
14
|
53
|
|
