TUBULAR MOTORS
The Tubular Motor is an ideal driving equipment
for opening window blinds, roller shades and retractable
awnings. It
is composed of reducer and arrester, and featured with compact
structure, long life, easy installation and safety operation.
Main Uses
 Rolling Door (Roller Shutter)
Rolling Curtain
Automatic Projection Screen
Automatic Rolling Screen
|
|
|
Models & Specifications
|

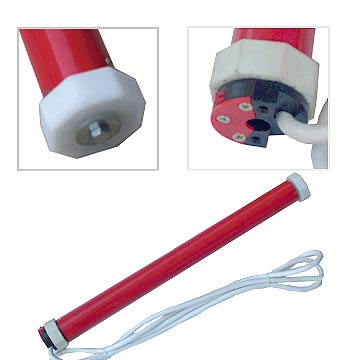

TB35 |
Voltage: AC 230V / 110V
Rated output power: 140W / 120W
Non-load current: 0. 6A / 1.0A
Rated output speed: 28rpm
Torque: 3Nm
Run time: ≥4 min
Protection class (VDE 0700): IP20
Insulation class (IEC 335-1): Ι
Size: Ф35 x 420mm
Weight: 1.1kg |
|
|

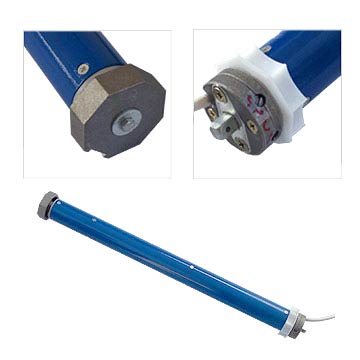

TB45A
|
Voltage: AC 230V / 110V
Rated output power: 270W / 260W
Non-load current: 1.1A / 2.2A
Rated output speed: 12rpm
Torque: 28Nm
Run time:≥4 min
Protection class (VDE 0700): IP44
Insulation class (IEC 335-1): Ι
Size: Ф45 x 625mm
Weight: 3kg |
|
|

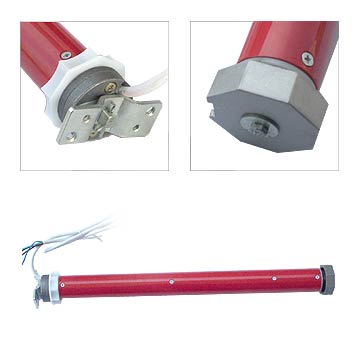

TB45 (10Nm)
|
Voltage: AC 230V / 110V
Rated output power: 220W / 270W
Non-load current: 1.1A / 2.2A
Rated output speed: 12rpm / 16rpm
Torque: 10Nm
Run time: ≥4 min
Protection class (VDE 0700): IP44
Insulation class (IEC 335-1): Ι
Size: Ф45 x 550mm
Weight: 2.5kg without manual |
|
|
TB45 (15Nm)
|
Voltage: AC 230V / 110V
Rated output power: 220W / 260W
Non-load current: 1.1A / 2.2A
Rated output speed: 12rpm / 16rpm
Torque: 15Nm
Run time: ≥4 min
Protection class (VDE 0700): IP44
Insulation class (IEC 335-1): Ι
Size: Ф45 x 550mm
Weight: 2.5kg without manual |
|
|
TB45 (20Nm)
|
Voltage: AC 230V / 110V
Rated output power: 220W / 260W
Non-load current: 1.1A / 2.2A
Rated output speed: 12rpm / 16rpm
Torque: 20Nm
Run time: ≥4 min
Protection class (VDE 0700): IP44
Insulation class (IEC 335-1): Ι
Size: Ф45 x 550mm
Weight: 2.5kg without manual |
|
|
TB45 (30Nm)
|
Voltage: AC 230V / 110V
Rated output power: 270W / 260W
Non-load current: 1.1A / 2.2A
Rated output speed: 12rpm / 16rpm
Torque: 30Nm
Run time: ≥4 min
Protection class (VDE 0700): IP44
Insulation class (IEC 335-1): Ι
Size: Ф45 x 550mm
Weight: 2.76kg without manual |
|
|
TB45 (40Nm)
|
Voltage: AC 230V / 110V
Rated output power: 350W
Non-load current: 1.5A / 3.0A
Rated output speed: 12rpm / 16rpm
Torque: 40Nm
Run time: ≥4 min
Protection class (VDE 0700): IP44
Insulation class (IEC 335-1): Ι
Size: Ф45 x 550mm
Weight: 2.9kg without manual |
|
|

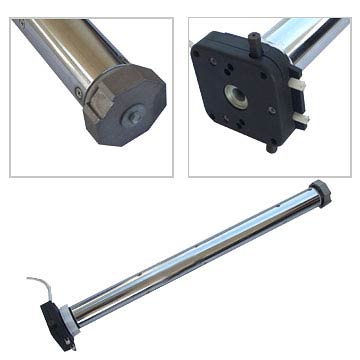

TB57A
|
Voltage: AC 230V / 110V
Rated output power: 400W
Non-load current: 1.6A / 3.2A
Rated output speed: 12rpm
Torque: 65Nm
Run time: ≥4 min
Protection class (VDE 0700): IP44
Insulation class (IEC 335-1): Ι
Size: Ф57 x 650mm
Weight: 4.6kg / 4.7kg |
|
|

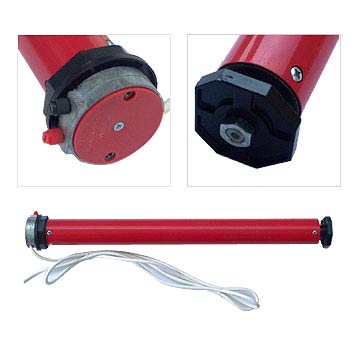

TB57B
|
Voltage: AC 230V / 110V
Rated output power: 400W
Non-load current: 1.6A / 3.2A
Rated output speed: 12rpm
Torque: 65Nm
Run time: ≥4 min
Protection class (VDE 0700): IP44
Insulation class (IEC 335-1): Ι
Size: Ф57 x 650mm
Weight: 5.0kg / 5.1kg |
|
