ZJTEX ELECTRIC MOTOR SPECIAL DC AND GEAR MOTORS

30ZY Series Permanent Magnet D.C. Motors

1.The application of motors     30ZY series permanent magnet D.C. motors are mainly used in the centraldoor-locks of automobile Volkswagen Santana. With characteristic of small size,high torque,and long life,they are mostly suitable for frequent stall and start application.They can also be used for ventilation system,electrical toys as  drive units.
2.Environment a)Environmental temperature: -40--+80centigrade degree b)Environmental humidity:  30%--95%  c)Atmospheric pressure: 86--106kPa
3.Performance TYPE NOMINAL VOLTAGE(VDC) NO LOAD LOAD SPEED(r/min) CURRENT(A) TORQUE(mN.m) SPEED(r/min) CURRENT(A) 30ZY081 8 8850 0.12 6.86 5400 1 30ZY121 12 12000 0.15 6.86 8400 1 30ZY122 12 6400 0.045 5.88 4300 0.42 30ZY241 24 7200 0.03 5.88 4700 0.25

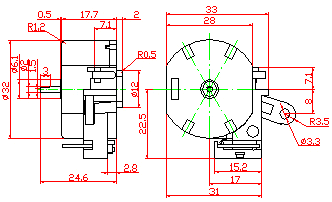

32ZY Series Permanent Magnet D.C. Motors

1.The application of motors     30ZY series permanent magnet D.C. motors are mainly used in the centraldoor-locks of automobile Volkswagen Santana.With characteristic of samll size,high torque,and long life,they are mostly suitable for  frequent stall and start application.They can also be used for ventilation system,electrical toys as a drive unit.
2.Environment a)Environmental temperature: -40--+80 centigrade degree b)Environmental humidity:  30%~95%  c)Atmospheric pressure: 86~106kPa

3.Performance TYPE NOMINAL VOLTAGE(VDC) NO LOAD LOAD SPEED(r/min) CURRENT(A) TORQUE(mN.m) SPEED(r/min) CURRENT(A) 32ZY121 12 12000 0.15 6.86 8400 1 32ZY122 12 6400 0.045 5.88 4320 0.42 32ZY241 24 7200 0.03 5.88 4700 0.25

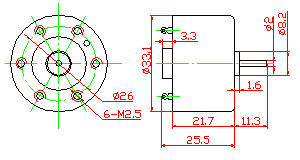

33ZY Series Permanent Magnet Motors

1.The application of motors     33ZY Series permanent magnet D.C. motors are mainly used in mechanical¡¢air massage chair. With characteristic of low noise, small size, high torque,long life and stable rotation,they are mostly suitable for the fields of frequently stall and start¡¢continuous rotating location.
2.Environment a)Environmental temperature: -10--60centograde degree b)Environmental humidity:  33%~95%  c)Atomopheric pressure:  86~106kPa  3.Perforamnce
TYPE MOMINAL VOLTAGE(VDC) NO LOAD LOAD SPEED(r/min) CURRENT(A) TORQUE(mN.m) SPEED(r/min) CURRENT(A) 33ZY121 7 1750 0.025 1.96 960 0.09 33ZY241 12 2900 0.03 1.96 1600 0.09

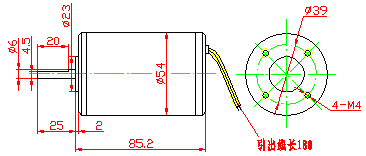

54ZY Series Permanent Magnet Motors

1.The application of motors    54ZY Series permanent magnet D.C. motors are mainly used in the automatic money counter devices. With characteristic of low noise,small size,high torque and long life, they can be used widely. As  drive units or servo units, they can be used in apparatus¡¢instrument and automatic controlling location.
2.Environment a)Environmental temperature: -25--+40 centigrade degree b)Environmental humidity: 54%~95%  c)Atomopheric pressure: 86~106kPa  3.  Performance
TYPE NORMINAL VOLTAGE(VDC) NO LOAD LOAD SPEED(r/min) CURRENT(A) TORQUE(mN.m) SPEED(r/min) CURRENT(A) 54ZY121 12 3400 0.55 57.3 2500 2.7 54ZY241 24 3650 0.30 81.3 3000 1.76
