38zyc

ZJTEX ELECTRIC MOTOR
Special DC and Gear Motor

38 series
Click on below drawings to see clear drawings

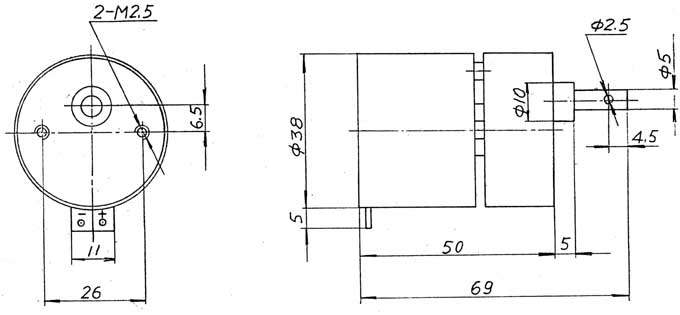

38ZYC01

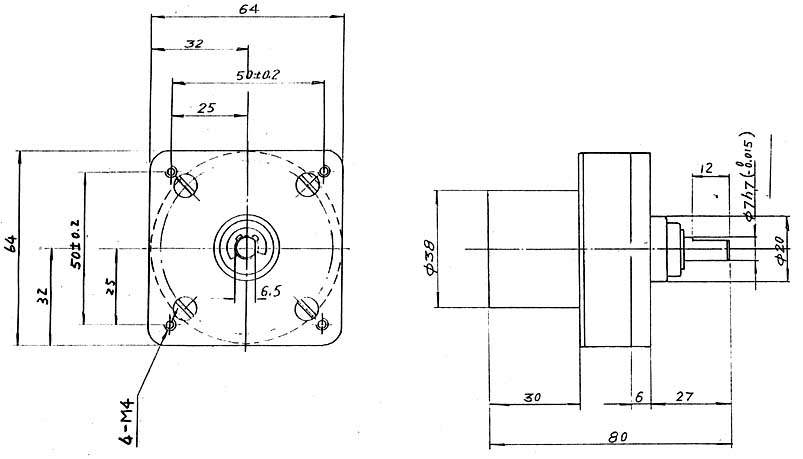

38ZYC02

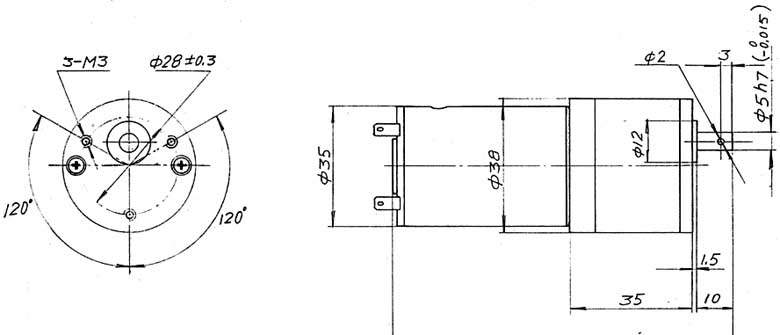

38ZYC03

38ZYC type D.C. geared motor

Drive motor technical parameter

	38ZYC-01,38ZYC-02	38ZYC-03
rated voltage	6V,9V,12V,24V D.C
No-load current	250mA,max	500mA,max
No-load speed	2500--6000r/min	4000--9000r/min
rated torque	0.08--0.3N.cm	0.5--2.0N.cm

Gearbox data:

38ZYC-01

38ZYC-02

38ZYC-03

Reduction ratio

1:25

1:63.5

1:39 1:53

1:80 1:104

1:143 1:280

1:400 1:760

1:1200 1:2000

1:3200

1:20

1:61

1:188

Major applications:

Mainly applied in money counter, auto printer, medical instrument computer drive, automatic instrument and metre, stage lamp, curtainer machine, mechanical load in small machine equipment, military product.

38ZYC-01,02

38ZYC-03,04

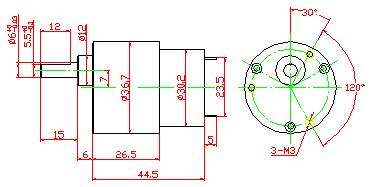

30ZY GEAR MOTORORS

1.The Application of Motors
With Characteristic of small size,high torque,low-speed and long life, these series motors are mostly suitable for the fields of control systems or other location drive units.

2.Environmental Condition
a)Environmental Temperature: -40--+80centigrade degree
b)Environmental Humidity: 30%_~95%
c)Atmospheric pressure: 86_~106kPa

3.Performance

TYPE	NOMINAL VOLTAGE(VDC)	NO LOAD		LOAD
TYPE	NOMINAL VOLTAGE(VDC)	SPEED(r/min)	CURRENT(A)	TORQUE(mN.m)	SPEED(r/min)	CURRENT(A)
30ZY081	8	8850	0.12	6.86	5400	1
30ZY121	12	12000	0.15	6.86	8400	1
30ZY122	12	6400	0.045	5.88	4300	0.42
30ZY241	24	7200	0.03	5.88	4700	0.25
