Features:Mechaelectric driving hub developed for electric bicycle. The hub motor was permanent magnet, brush-less and direct driving. The hub has high efficiency, low temperature, long life. The motor controller was 3-phase PWM control style, has good speed control ability and multiple protections. The controller can be compacted inside the hub motor, so the driving system has the most compact structure and easy to use. You only to do is connect power.

Voltage:        DC24V/DC36V  Power:          110W~220W  Speed:          180~280rpm  Efficiency:      >80%(System)  Noise:           <45db  Life:              50,000 h  Weight:         5.1kg  Driving Style: Front,Rear  Holes of Spokes: 28,36  Materials:Aluminum  Surface processing:Painting/Plastic                          Painting  Output cable:Two end side of axis  Dimension:166mm(D)*88(H)   Optional:Fixing components

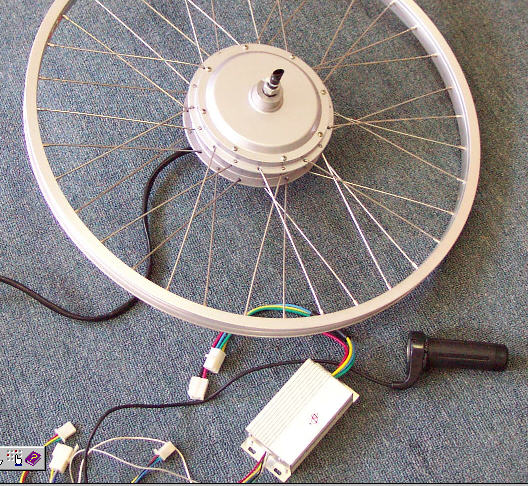

We can also supply a complete kits including front or rear motorized wheel,electronic controller,lead acid battery,battery charger,power grip,bicycle carrier.A easy kits to convert your bike into an electric bicycle with the lowest cost and highest reliability and quality.

Click to see big image
