ZJTEX ELECTRIC MOTOR STANDARD DC MOTOR




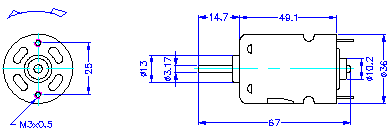

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
HD3S-4070	6.0-12.0	12.0V  CONSTANT	11000	0.50	9360	2.87	3.26	235.0	22.58	65.56	21.94	1580
HD3S-20240	12.0-24.0	24.0V  CONSTANT	6060	0.18	5000	0.66	2.58	186.0	9.54	60.24	14.72	1060
HD3S-26135	8.0-12.0	12.0V  CONSTANT	5100	0.23	4270	0.84	2.08	150.0	6.62	65.67	11.94	860
HD3S-30100	12.0-24.0	24.0V  CONSTANT	15000	0.60	12700	2.80	4.44	320.0	41.7	62.95	29.16	2100



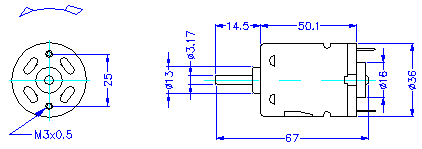

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
HD5-4525	6.0-12.0	6.0V  CONSTANT	8700	0.90	6830	3.30	2.64	190.0	13.25	66.94	12.22	880
HD5-2485	12.0-24.0	12.0V CONSTANT	5000	0.20	4320	0.80	1.39	100.0	4.43	46.17	10.21	735
HD5-18140	12.0-24.0	24.0V CONSTANT	5800	0.14	4640	0.56	2.50	180.0	8.53	63.14	12.50	900
HD5-2670	8.0-12.0	12.0V CONSTANT	6000	0.35	4800	1.15	2.66	192.0	9.50	69.07	13.61	980



MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
HD3SF-6527	3.0-7.2	7.2V  CONSTANT	16500	1.80	14000	8.65	3.75	270.0	38.86	62.61	25.00	1800
HD3SF-5540	4.5-12.0	12.0V  CONSTANT	18000	1.40	15270	6.16	4.45	320.0	50.60	68.51	29.58	2130
HD3SF-5045	4.5-12.0	12.0V  CONSTANT	16500	1.20	13680	5.82	4.72	340.0	48.00	68.72	27.78	2000
HD3SF-7522	6.0-7.5	7.5V  CONSTANT	19600	2.00	17000	10.28	4.17	300.0	51.66	67.00	30.55	2200



MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
HD5F-5015	6.0-12.0	12.0V  CONSTANT	25500	2.10	21420	9.46	4.20	300.0	66.77	58.82	26.39	1900
HD5F-2485	12.0-24.0	24.0V CONSTANT	9700	0.35	8000	1.24	3.47	250.0	20.42	68.74	19.44	1400
HD5F-3243	6.0-12.0	12.0V CONSTANT	8600	0.40	7400	1.77	2.71	195.0	14.81	69.72	18.61	1340
HD5F-3535	12.0-24.0	24.0V CONSTANT	24000	1.20	20180	4.22	4.58	330.0	69.40	68.51	29.17	2100

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)
HD3SFN-5045F	4.5-12.0	12.0V CONSTANT	16500	1.20	13680	5.82	4.72	340.00	48.00	68.72	27.78	2000
HD3SFN-7524F	6.0-12.0	12.0V CONSTANT	29600	2.30	25500	11.70	5.42	390.00	102.00	73.43	39.72	2860
HD3SFN-7021F	4.8-6.0	6.0V CONSTANT	16700	1.90	13990	8.96	3.44	248.00	35.60	66.36	20.56	1480
HD3SFN-6530F	6.0-12.0	12.0V CONSTANT	25800	2.00	22000	10.02	5.28	380.00	87.58	72.84	36.11	2660



MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)
HD5FN-4525	6.0-12.0	12.0V CONSTANT	17000	1.20	14225	4.62	3.85	277.00	40.48	73.02	23.61	1700
HD5FN-5016	6.0-12.0	12.0V CONSTANT	25000	2.00	19360	8.35	4.35	313.00	62.19	62.06	22.50	1620
HT5FN-4032	6.0-12.0	12.0V CONSTANT	18400	1.20	14850	3.80	2.74	197.00	29.96	66.21	14.17	1020
HT5FN-5013	4.8-7.2	7.2V CONSTANT	25000	3.00	19220	9.30	2.25	162.00	31.92	47.68	9.72	700



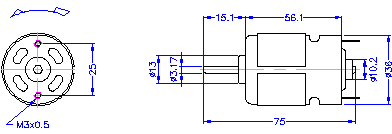

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
KD3-9015	3.6-4.8	4.8V  CONSTANT	15000	2.20	12730	9.97	3.67	264.0	34.54	72.16	24.32	1750
KD3-26150	12.0-24.0	12.0V  CONSTANT	3600	0.16	3010	0.68	2.50	180.0	5.56	67.43	15.28	1100
KD3-30100	12.0-24.0	12.0V  CONSTANT	5200	0.28	4280	1.30	2.96	213.0	9.35	59.95	16.67	1200
KD3-5540	6.0-12.0	12.0V  CONSTANT	12700	1.20	10800	5.59	5.42	390.0	43.68	65.11	36.11	2600



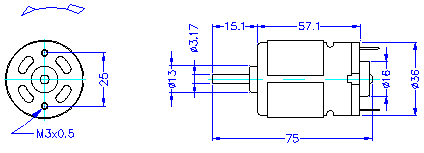

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
KD5-4525	6.0-15.0	6.0V  CONSTANT	5800	0.60	5000	2.32	2.28	164.0	8.45	60.63	16.67	1200
KD5-4030	6.0-15.0	12.0V CONSTANT	9700	0.50	8210	2.65	4.25	306.0	25.79	81.11	27.78	2000
KD5-2670	12.0-24.0	24.0V  CONSTANT	8300	0.20	7330	1.12	3.24	233.0	17.54	65.62	27.78	2000
KD5-18130	18.0-24.0	24.0V CONSTANT	4150	0.10	3400	0.46	2.88	207.0	7.23	66.06	15.97	1150




MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
KD3SF-6528	6.0-12.0	12.0V CONSTANT	18000	1.30	15480	6.78	4.85	349.0	55.45	68.25	34.72	2500
KD3F-6035	12.0-18.0	12.0V  CONSTANT	15400	1.00	13330	6.19	5.42	390.0	53.36	71.83	40.28	2900
KD3SF-6040F	6.0-12.0	12.0V  CONSTANT	13400	1.00	11700	5.70	5.83	420.0	50.41	73.32	47.22	3400
KD3SF-5045F	12.0-19.2	19.2V  CONSTANT	19300	1.00	16700	5.20	5.69	410.0	70.75	71.45	42.64	3070



MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
KD5F-16165	18.0-24.0	18.0V  CONSTANT	2290	0.10	1900	0.23	2.08	150.0	2.95	70.65	12.50	900
KD5F-3250	12.0-24.0	24.0V CONSTANT	11000	0.30	9500	1.55	3.82	275.0	27.25	73.25	29.86	2150
KD5F-4525	6.0-12.0	12.0V  CONSTANT	12280	0.48	10730	3.33	3.83	276.0	30.44	76.24	30.42	2190
KD5F-5015	3.6-6.0	6.0V CONSTANT	9600	1.30	8130	5.53	3.61	260.0	22.27	67.13	24.31	1750



MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)
KD3SFN-6040F	6.0-12.0	12.0V CONSTANT	13400	1.00	11700	5.70	5.83	420.0	50.41	73.32	47.22	3400
KD3SFN-7518F	6.0-12.0	12.0V CONSTANT	23000	2.50	19500	10.69	4.44	320.0	65.30	63.63	29.86	2150
KD3SFN-5050F	6.0-12.0	12.0V CONSTANT	10200	0.70	8800	3.72	4.82	347.0	31.64	70.87	37.50	2700
KD3SFN-6530F	6.0-12.0	12.0V CONSTANT	16500	1.60	13970	7.73	5.69	410.0	59.34	64.00	37.50	2700



MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)
KD5FN-6012	6.0-12.0	12.0V CONSTANT	24200	2.00	20200	9.30	5.28	380.0	78.83	70.63	33.33	2400
KD5FN-4525	6.0-12.0	12.0V CONSTANT	12280	0.48	10730	3.33	3.83	276.0	30.44	76.24	30.42	2190
