ZJTEX ELECTRIC MOTOR STANDARD DC MOTOR





MODEL

VOLTAGE

NO LOAD

AT MAXIMUM EFFICIENCY

STALL TORQUE

OPERATING RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

OUTPUT

EFF

rpm

A

rpm

A

OZ-in

(g-cm)

W

%

OZ-in

(g-cm)

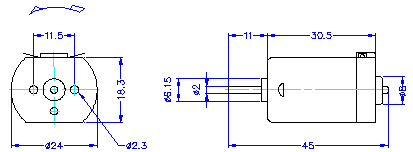

UE-280- 2865

1.5-2.4

2.4V CONSTANT

8500

0.16

6800

0.88

0.230

16.5

1.15

54.50

1.139

82

MODEL

VOLTAGE

NO LOAD

AT MAXIMUM EFFICIENCY

STALL TORQUE

OPERATING RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

OUTPUT

EFF

rpm

A

rpm

A

OZ-in

(g-cm)

W

%

OZ-in

(g-cm)

UE-280S-20120

3.6-6.0

6.0V CONSTANT

8400

0.18

6720

0.67

0.450

32.0

2.21

54.90

2.22

160

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)
UC-280-20120	3.0-4.5	4.5V CONSTANT	8500	0.10	6800	0.52	0.236	17.0	1.18	50.00	1.13	85
UC-280- 2865	1.5-3.0	3.0V CONSTANT	10400	0.20	8300	1.14	0.286	20.6	1.75	51.30	1.43	103

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)
UC-280S-16205	6.0-18.0	12.0V CONSTANT	9700	0.10	8000	0.40	0.528	38.0	3.15	67.31	3.056	220
UC-280S-08550	12.0-24.0	12.0V CONSTANT	3500	0.05	2600	0.08	0.222	16.0	0.43	44.80	0.875	63
UC-280S-18145	6.0-12.0	12.0V CONSTANT	13000	0.18	10800	0.68	0.625	45.0	4.98	61.03	3.611	260
UC-280S-18165	6.0-12.0	12.0V CONSTANT	12000	0.15	10200	0.60	0.556	40.0	4.20	60.60	3.472	250






MODEL FE-260	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
FE-260- 2670	1.5-3.0	1.5V CONSTANT	6100	0.170	4770	0.61	0.136	9.80	0.48	52.44	0.625	45
FE-260- 2295	1.5-4.5	3.0V  CONSTANT	9300	0.160	7370	0.61	0.196	14.11	1.07	58.21	0.944	68
FE-260- 18130	1.5-4.5	2.4V  CONSTANT	5500	0.100	4260	0.31	0.118	8.53	0.37	50.15	0.528	38
FE-260- 08450	6.0-12.0	12.0V  CONSTANT	7500	0.035	5650	0.11	0.143	10.32	0.60	46.63	0.583	42



MODEL FC-260	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
FC-260- 2670	3.0-4.5	3.0V  CONSTANT	10000	0.30	7840	1.09	0.233	16.83	1.35	41.40	1.083	78
FC-260- 18130	4.5-6.0	4.5V  CONSTANT	9200	0.14	7520	0.52	0.206	14.84	1.10	48.76	0.972	70
FC-260- 10350	6.0-12.0	12.0V  CONSTANT	9500	0.06	7220	0.19	0.200	14.42	1.07	46.84	0.833	60
FC-260- 07520	12.0-24.0	24.0V  CONSTANT	12400	0.07	9580	0.14	0.220	15.88	1.56	47.85	0.972	70

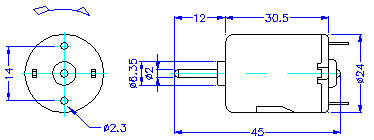

MODEL FE-280	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
FE-280- 2865	1.5-3.0	2.4V  CONSTANT	7500	0.150	6120	0.72	0.229	16.47	1.04	60.43	1.250	90
FE-280- 2485	1.5-4.5	3.0V CONSTANT	7000	0.140	5690	0.61	0.250	17.98	1.05	57.63	1.330	96
FE-280- 20120	3.0-6.0	3.0V CONSTANT	5000	0.090	4000	0.36	0.208	15.00	0.62	57.00	1.040	75
FE-280- 14200	4.5-9.0	9.0V  CONSTANT	9000	0.060	7300	0.26	0.246	17.73	1.33	57.20	1.305	94



MODEL FE-280S	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
FE-280S- 2865	1.5-4.5	3.0V  CONSTANT	7700	0.200	6360	0.95	0.386	27.80	1.82	63.69	2.220	160
FE-280S- 2295	3.0-6.0	6.0V CONSTANT	10200	0.160	8480	0.82	0.502	36.15	3.15	64.29	2.986	215
FE-280S- 20120	3.0-6.0	6.0V  CONSTANT	8200	0.120	6800	0.58	0.427	30.78	2.15	61.69	2.500	180
FE-280S- 16170	3.0-6.0	6.0V  CONSTANT	5600	0.065	4570	0.29	0.305	21.96	1.03	59.24	1.666	120



MODEL FC-280	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
FC-280- 2865	4.5-6.0	4.5V  CONSTANT	12000	0.280	9970	1.38	0.423	30.44	3.11	50.14	2.500	180
FC-280- 2485	4.5-7.2	4.5V  CONSTANT	9600	0.200	7820	0.88	0.360	26.00	2.08	52.67	1.940	140
FC-280- 20120	4.5-9.0	6.0V  CONSTANT	9500	0.1300	7800	0.60	0.334	24.06	1.93	53.53	1.875	135
FC-280- 12280	6.0-12.0	12.0V  CONSTANT	8700	0.07	6840	0.26	0.297	21.38	1.50	48.59	1.389	100



MODEL FC-280S	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
FC-280S- 2865	4.5-6.0	4.5V  CONSTANT	10000	0.280	8330	1.39	0.534	38.45	3.29	52.53	3.194	230
FC-280S- 2485	4.5-9.0	4.5V  CONSTANT	8500	0.2300	6850	0.96	0.483	34.78	2.45	56.64	2.500	180
FC-280S- 20120	4.5-12.0	12.0V  CONSTANT	14500	0.16	12270	0.88	0.683	49.17	6.19	58.63	4.445	320
FC-280S- 09400	12.0-24.0	24.0V CONSTANT	9100	0.040	7390	0.18	0.430	30.95	2.35	56.22	2.292	165
