ZJTEX ELECTRIC MOTOR STANDARD DC MOTOR



MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)

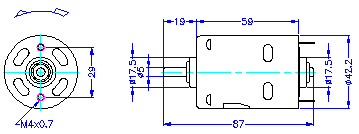

750-8027	6.0-12.0	9.6V CONSTANT	18600	2.30	15900	12.00	7.22	520.0	84.80	73.64	50.00	3600
750-8523	4.8-9.6	6.0V CONSTANT	13200	2.20	11400	12.70	6.53	470.0	55.00	72.14	48.61	3500



MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)
755-3570	12.0-30.0	24.0V CONSTANT	9200	0.35	7900	2.20	5.83	420.0	34.00	64.50	41.67	3000
755-5027	6.0-18.0	13.2V CONSTANT	12800	1.20	11000	8.60	8.33	600.0	67.70	60.00	58.30	4200



MODEL

VOLTAGE

NO LOAD

AT MAXIMUM EFFICIENCY

STALL TORQUE

OPERATING RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

OUTPUT

EFF

rpm

A

rpm

A

OZ-in

(g-cm)

W

%

OZ-in

(g-cm)

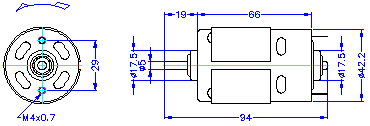

770-6040

6.0-18.0

12.0V CONSTANT

12700

1.60

11000

10.50

9.72

700.0

79.00

62.70

76.40

5500



MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)
775-7513	6.0-15.0	12.0V CONSTANT	18700	2.40	16000	14.00	9.72	700.0	115.00	68.40	69.40	5000
775-2885	12.0-36.0	24.0V CONSTANT	5600	0.35	4700	1.30	5.00	360.0	17.36	55.60	33.30	2400

CONTINUE
