ZJTEX ELECTRIC MOTOR STANDARD DC MOTOR



MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)

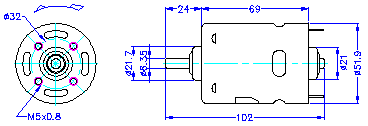

987-5025	12.0-18.0	12.0V CONSTANT	5100	1.10	4270	4.00	8.33	600.0	26.28	55.00	51.39	3700
987-8009	6.0-12.0	12.0V CONSTANT	14000	2.80	12000	18.60	13.89	1100.0	135.00	60.00	111.00	8000

MODEL

VOLTAGE

NO LOAD

AT MAXIMUM EFFICIENCY

STALL TORQUE

OPERATING RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

OUTPUT

EFF

rpm

A

rpm

A

OZ-in

(g-cm)

W

%

OZ-in

(g-cm)

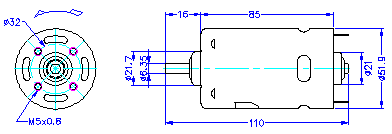

987L-4531

12.0-24.0

12.0V CONSTANT

2900

0.45

2300

2.70

13.75

990.0

23.36

72.00

69.45

5000



MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)

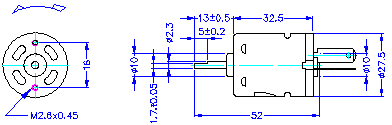

MD5-2554AS-	6.0-12.0	12.0V CONSTANT	20800	0.50	17000	1.7	1.01	72.92	12.72	62.38	5.56	400
MD5-15120AS-	12.0-24.0	24.0V CONSTANT	18800	0.24	15100	0.7	0.93	66.68	10.34	61.54	4.72	340
MD5-2450AS-	6.0-12.0	12.0V CONSTANT	22000	0.55	17200	2.00	1.08	77.50	13.73	56.91	5.00	360

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	OZ-in	(g-cm)	W	%	OZ-in	(g-cm)

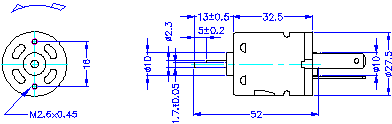

MD5-2445AS-BB	4.8-6.0	6.0V CONSTANT	12000	0.55	9300	1.4	0.63	45.00	4.21	50.48	2.78	200
MD5-2554AS-BB	6.0-12.0	12.0V CONSTANT	20800	0.50	17000	1.7	1.01	72.92	12.72	62.38	5.56	400



MODEL

VOLTAGE

NO LOAD

AT MAXIMUM EFFICIENCY

STALL TORQUE

OPERATING RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

OUTPUT

EFF

rpm

A

rpm

A

oz-in

(g-cm)

W

%

oz-in

(g-cm)

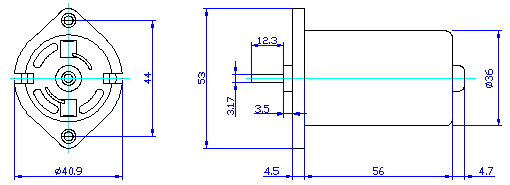

KD5A-3058

12.0-24.0

12.0V  CONSTANT

5800

0.30

5050

0.97

2.15

155

8.02

69.21

14.03

1010

CONTINUE
