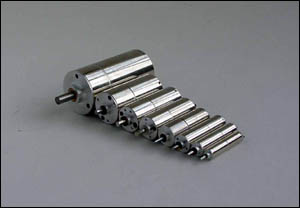

| Composed of a cup-sharped armature DC servo motor and a gear box, the
gearmotor features low moment of inertia,high starting torque,wide speed
range and nice communitating performance. It is usable in automatic control
systems as a driver or an actuator.
There are many varieties of the gearmotors. The following table covers typical ones for you to choose. For our recommendation ,please contact our export/market development division and tell us your requirements of motor according to the following: 1.0peration voltage(vcd) 2.Torque(mN.cm/g.cm) 3.Speed (Under Load or NO-Load) 4.OPerating Mode (Continuous or INtermittent) 5.External Dimensions 6.Others |
Coreless Servo DC Gearmotor Series:
|
Typical Product Instruction:
¦µdia

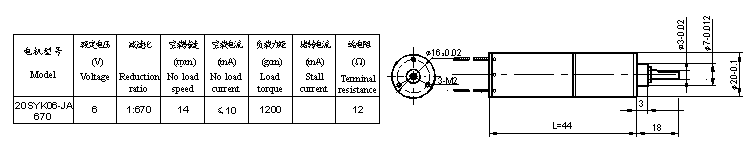

20Type coreless DC servo gear motor
