Coreless Servo Motor |
| Having a cup-shaped armature and a piece of rare earth manet, the motor
fealures low moment of inertia,high starting torque,wide speed range and
nice communitating performance. It is usable in automatic control systems

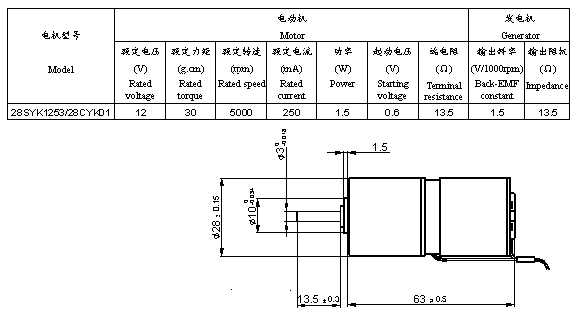

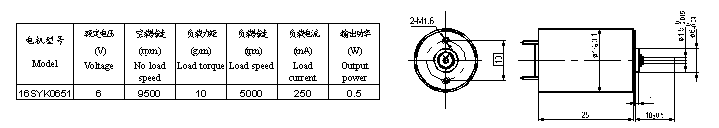

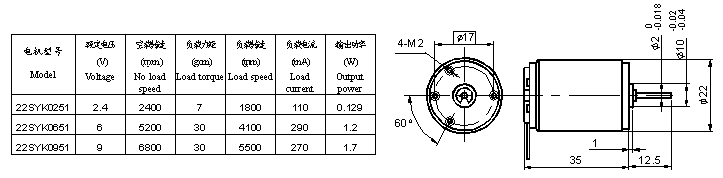

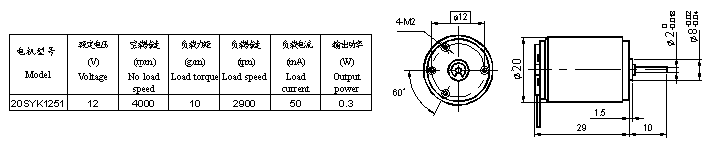

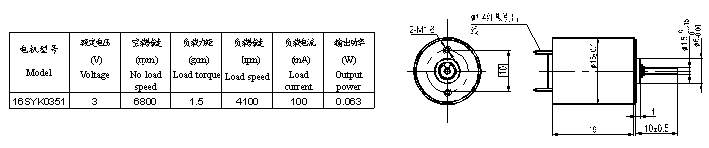

as a driver or an actuator. There are many varieties of the mator. The
following table covers typical ones for you to choose. For our recommendation
,please contact our export/market development division and tell us your
requirements of motor according to the following £º
1.0peration voltage(vcd) 2.Torque(mN.cm/g.cm) 3.Speed (Under Load or NO-Load) 4.Operating Mode (Continuous or Intermittent) 5.External Dimensions 6.Others |
|
