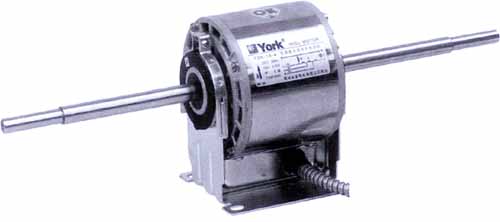

| 1. These motors are designed for various kinds of fan coil units
with a range of FP2.5~25 (or 200CFM~1400CFM in British standards) with
a static perssure of 0Pa, 30Pa, 40Pa, and 60Pa, and can mach F140,
F145, F160 fan blades and can meet special requirements from customers.
2. Special process treatment has been made to achieve better safety performance at different working conditions. 3. Staft has been hardened and plated with Ni alloy, housing has been undergone anti-rust processing. 4. Voltage can be 100v-120v, 200v-240v, frequency can be 50Hz/60Hz and output power can be 6-200w if required. 5. Motor efficiency, temperature rise, noise and vibration reach domestic lead level. 6. Imported low noise ball bearings form Japan with life to be over 12 years without Iubricating. 7. Protoype motors required by customers can be delivered within one week. 8.All these motors can be designed to multi speed motors . |
| Model | Fcu model | Rated output power(W) | Pole | Rated load speed(r/min) | Rated input power(w) | No load noise
[dB(A)] |
Capacitor(uF/V) | ||
| YDK-6-6D | FP3.5(0Pa) | 6 | 6 | 760/660/570 | 28 | MAX37 | 0.6/450 | ||
| YSK-8-6D | FP5.0(0Pa) | 8 | 6 | 750/600/450 | 35 | MAX37 | 1/450 | ||
| YSK-12-6D | FP6.3(0Pa) | 12 | 6 | 780/600/450 | 40 | MAX37 | 1/450 | ||
| YSK-16-6D | FP7.1(0Pa) | 16 | 6 | 800/600/450 | 48 | MAX37 | 1.2/450 | ||
| YSK-20-6D | FP8.0(0Pa) | 20 | 6 | 820/630/450 | 55 | MAX38 | 1.5/450 | ||
| YSK-25-6D | FP10.0(0Pa) | 25 | 6 | 860/750/550 | 65 | MAX38 | 1.8/450 | ||
| YDK-8-4D |
|
8 | 4 | 760/690/500 | 38 | MAX40 | 1.2/450 | ||
| YSK-12-4D |
|
12 | 4 | 750/570/450 | 45 | MAX40 | 1.5/450 | ||
| YSK-16-4D | FP6.3(0Pa) | 16 | 4 | 780/580/480 | 49 | MAX40 | 1.5/450 | ||
| YSK-18-4D |
|
18 | 4 | 800/650/500 | 51 | MAX40 | 2/450 | ||
| YSK-22-4D |
|
22 | 4 | 830/660/500 | 77 | MAX40 | 2.5/450 | ||
| YSK-30-4D |
|
30 | 4 | 880/750/650 | 92 | MAX42 | 2.5/450 | ||
| YDK-16-4D |
|
16 | 4 | 850/670/500 | 44 | MAX40 | 1.5/450 | ||
| YSK-20-4D |
|
20 | 4 | 860/670/550 | 60 | MAX40 | 2/450 | ||
| YSK-25-4D | 400S(40Pa)FP6.3(50Pa) | 25 | 4 | 900/750/500 | 75 | MAX40 | 2.5/450 | ||
| YSK-30-4D |
|
30 | 4 | 950/800/700 | 85 | MAX42 | 2.5/450 | ||
| YSK-40-4D |
|
40 | 4 | 1000/800/600 | 110 | MAX42 | 2.5/450 | ||
| YSK-50-4D |
|
50 | 4 | 1050/900/750 | 135 | MAX44 | 4/450 | ||
| YSK-60-4D |
|
60 | 4 | 1100/950/750 | 145 | MAX44 | 4/450 |
| Model | Fcu model | Nominal output power(W) | Pole | Rated speed(rpm) | Rated input power(w) | No load noise
[dB(A)] |
Capacitor(uF/V) |
| YDK-20-4E | 300S(30Pa) | 20 | 4 | 900/720/550 | 68 | MAX40 | 2/450 |
| YSK-25-4E | 400S(30Pa) | 25 | 4 | 780/620/470 | 85 | MAX40 | 3/450 |
| YSK-28-4E | 500S(30Pa) | 28 | 4 | 800/650/500 | 90 | MAX40 | 4/450 |
| YSK-40-4E | 600S(30Pa) | 40 | 4 | 870/700/520 | 110 | MAX42 | 4/450 |
| YSK-60-4E | 800S(30Pa) | 60 | 4 | 970/730/580 | 150 | MAX42 | 5/450 |
| YDK-30-4E | 300H(60Pa) | 30 | 4 | 990/800/650 | 80 | MAX40 | 3/450 |
| YSK-35-4E | 400H(60Pa) | 35 | 4 | 890/700/550 | 105 | MAX42 | 4/450 |
| YSK-42-4E | 500H(60Pa) | 42 | 4 | 900/700/550 | 110 | MAX42 | 4/450 |
| YSK-50-4E | 600H(60Pa) | 50 | 4 | 910/700/550 | 130 | MAX42 | 4/450 |
| YSK-80-4E | 800H(60Pa) | 80 | 4 | 1100/770/600 | 200 | MAX44 | 5/450 |
| YDK-10-6E | 300S(0Pa) | 10 | 6 | 700/600/500 | 35 | MAX37 | 1.0/450 |
| YSK-16-6E | 400S(0Pa) | 16 | 6 | 610/510/420 | 50 | MAX37 | 1.5/450 |
| YSK-20-6E | 500S(0Pa) | 20 | 6 | 650/550/450 | 60 | MAX38 | 2/450 |
| YSK-25-6E | 600S(0Pa) | 25 | 6 | 750/600/500 | 70 | MAX38 | 2/450 |
| YSK-30-6E | 800S(0Pa) | 30 | 6 | 850/670/550 | 85 | MAX38 | 2.5/450 |
