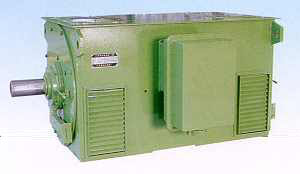

YKK SERIES HIGH-VOLT THREE PHASE ELECTRIC MOTOR |
YKK SERIES MIDDLE-SIZED HIGH-VOLT THREE PHASE ASYNCHRONOUS ELECTRIC MOTOR is the latest products developed by our plant, which has good properties, such as reasonable constructure, advance technology, high efficiency, save energy, low noise & vibration, liable erformance and maintenance.
The power grade, arrangement dimension, electric performance conform to national standards GB755-87, as well as to IEC standards.
The BASIC
arrangement code of the electric motor is the horizontal foot mounting(imb3),
the duty the electric motor is continuous(s1).
USING
The electric motor is used for driving different machines, such as compressor, water pump, crack machine, cut machine, transportation machine, and other equipment, it also for mine, mechanical industry, petroleum & chemistry industry, power plant and so on, which used as the primitive driver, the electric motors used for driving blower, grinding coal, producing steel and crane should marked the using & technical requirements when orders, the special design can protect the reliable performance.
FRAME NUMBERS AND OUTPUT POWER
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HIGH OF THE FRAME |
|
||||
|
355 2 355 3 355 4 |
200 220 250 |
185
|
/ | / | / |
|
400 2 400 3 400 4 400 5 |
315 355 400 450 |
250 280 315 |
185
|
/ | / |
|
450 2 450 3 450 4 450 5 |
560 630 710 |
400 450 500 |
280 315 355 |
200 220 250 280 |
185
|
|
500 2 500 3 500 4 |
900 1000 1120 |
630 710 800 |
450 500 560 |
355 400 450 |
250 280 315 |
