ZJTEX ELECTRIC MOTOR

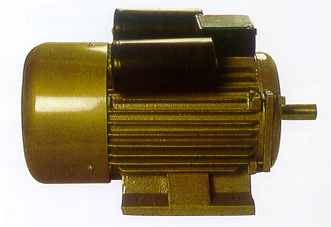

YC HEAVY-DUTY SINGLE-PHASE CAPACITOR STARTING INDUCTION MOTORS

YC series heavy-duty single-phase motors are suitable for powering small type machine tools and water pumps, specially for family workshops where only single-phase current supply is available. Motors of the said series are integrated with up-to-date design, built with materials and possess the features of pleasant-looking appearance, outstanding performance, easy maintenace and reliable running. The designations, signs and nominal values are all in conformity with I.E.C. standards.

YC series protected motors are of IP44 totally enclosed fan-cooling starting. Under rated voltage and rated torque and 60HZ is more than 2.75times.Motors for 4HP OR OVER ARE OF capacitor start and run type. They all concentrate the advantages of high starting torque, smooth tunning, low temperature rise, low noise and greater overload performance.

The rated frequency of the motor is 50~60HZ,and the rated voltage is 200~220V,we can also offer various voltage under 500V according to customer s requirement.


PERFORMANCE SPECIFICATIONS


TYPE
KW
VOLT
AMPS
R.P.M.
YC-7112
0.18
230
1.81
2800
YC-7114
0.12
230
1.80
1400
YC-7122
0.25
230
2.30
2800
YC-7142
0.75
230
5.82
2800
YC-7124
0.18
230
2.38
1400
YC-7134
0.37
230
4.05
1400
YC-8012
0.37
230
3.21
2800
YC-8014
0.25
230
2.97
1400
YC-8022
0.55
230
4.45
2800
YC-8024
0.37
230
4.05
1400
YC-90S2
0.75
230
5.82
2800
YC-90S4
0.55
230
5.25
1400
YC-90L2
1.1
230
8.30
2800
YC-90L4
0.75
230
6.57
1400


Model
Power rating
Current
(A)
¡Starting torque
Rated torque
¡Starting current
Rated current
Speed
(r.p.m)
HP
KW
YC80a-2
1/2
0.370
3.5
3
6.5
2840
YC80b-2
3/4
0.550
4.9
3
6.5
2860
YC80c-2
1
0.750
5.1
3
6.5
2880
YC90S-2
1.5
1.1
8.83
3
7.0
2900
YC90L-2
2
1.5
11.4
3
7.0
2920
YC100L-2
3
2.2
16.5
3
7.0
2940
YC80a-4
1/3
0.250
3.2
3
6
1410
YC80b-4
1/2
0.370
4.3
3
6
1420
YC80c-4
3/4
0.550
5.8
3
6
1430
YC90s-4
1
0.750
7.13
3
6.5
1440
YC90L-4
1.5
1.1
9.82
3
6.5
1450
YC100L-4
2
1.5
12.4
3
6.5
1460
YC112M-4
3
2.2
17.6
3
6.5
1470
YC132SA-4
4
3
23
1.6
6
1460
YC132SB-4
5
3.7
27
1.6
6
1460

Remarks: The tabulated values are those under rated Voltage 220V and rated frequency 50HZ.
