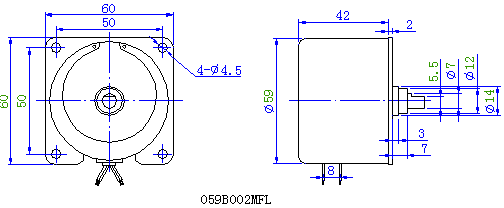

Permanent Magnetic Synchronous Motor 059B002MFL

Ice Maker Synchronous Motor

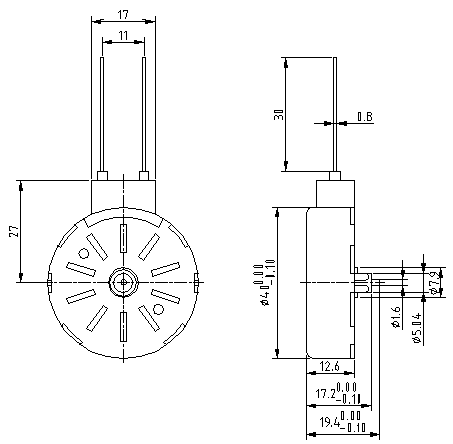

40TYZ-250 Permanent Magnet Synchronous Motor

VARIOUS USES spinning lamps,microwave stove

SPECIFICATIONS

Rated voltage	AC220V
Rated power	2W
Power frequency	50HZ
Rated rotor speed	250r/min
Rated torque	>9g.cm
Noise level	<40db
Temperature Rise	<45K
Insulation grade	E
Insulation Resistance	>100M/500VDC
Withstand voltage	2000v/min/0.5mA

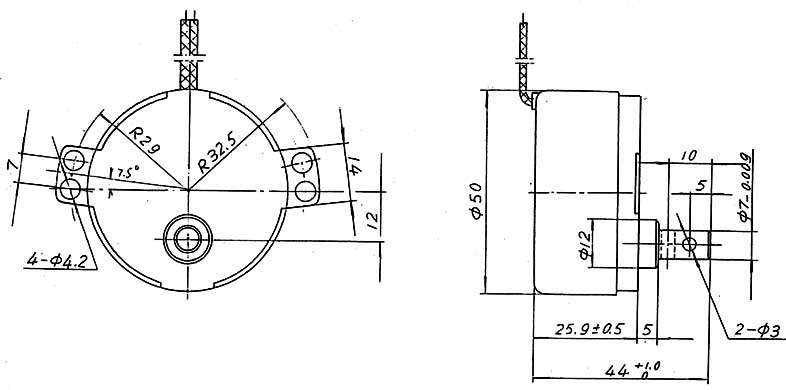

50TYZ Permanent Magnetic Synchrons Motor

Technical Data:

rated voltage	V	220
rated frequency	Hz	50/60
input power	W	4/3.3
output speed	r/min	1/1.2	2.5/3	5/6	9/10.8	20/24	30/36	50/60	180/216
output torque	N.cm min	200/166.7	85/70.8	45/37.5	25/20.8	11/9.2	7.0/5.8	4.5/3.75	1.2/1
rotation direction		CW or CCW or CW/CCW
Operation voltage changed with user demand(12--220V)
Output shaft diameter and length made with user demand

Major applications:

Widely used in fan , quartz heater, air conditionor, turn TV antenna, turn lamp stage lamp, electric advertisment, electric goods shelves, dish washer etc.

Click the drawing for bigger image

TOP

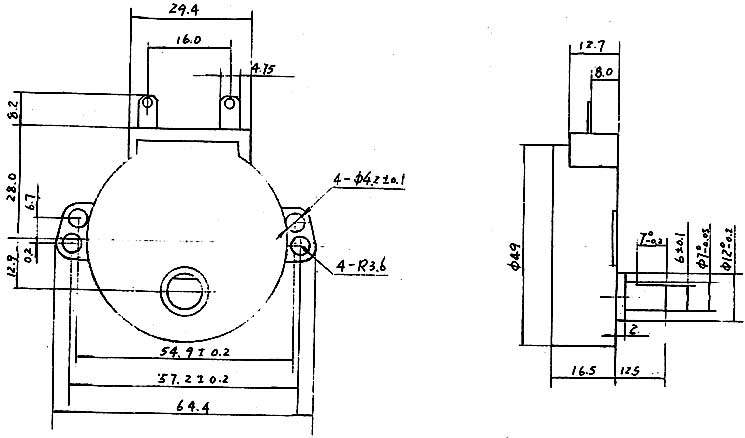

50TYZ-C Permanent Magnetic Synchrons Motor

Technical Data:

rated volatage	V	220
rated frequency	Hz	50/60
input power	W	3.5/2.9
output speed	r/min	2.5/3	5/6
output torque	N.cm min	70/58.3	35/39.2
rotation direction		CW or CCW or CW/CCW
Operation voltage changed with users demand(12-220V)
Output shaft diameter and length made with users demand

Major applications:

Air-conditioner turn leaf motor, micro-wave stoven turn plate motor

Click the drawing for bigger image

TOP

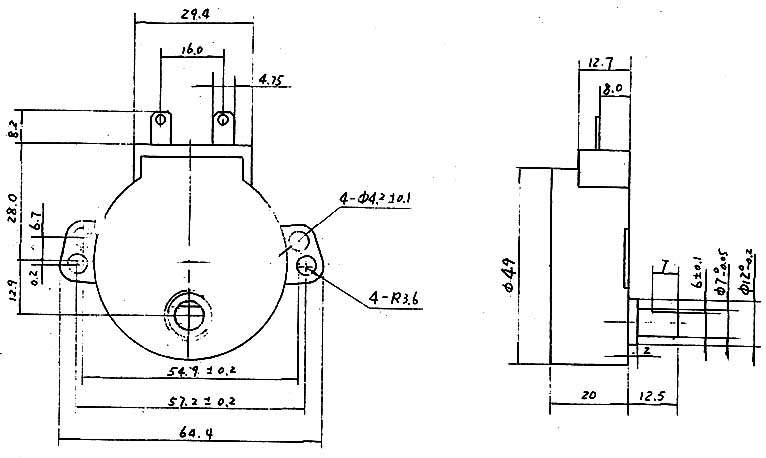

50TYZ-D Permanent Magnetic Synchrons Motor

Technical Data

rated voltage	V	220
rated frequency	Hz	50/60
input power	W	3.5/2.9
output speed	r/min	2.5/3	4.1/5	5/6	33/40
output torque	N.cm min	80/66.7	45/37.5	40/33.3	6/5
rotation direction		CW or CCW or CW/CCW
Operation voltage changed with user demand(12-220V)
Output shaft diameter and length made with user demand

Major applications:

Air-conditioner turn leaf motor, Micro-wave stoven turn plate motor.

Click the drawing for bigger image

TOP

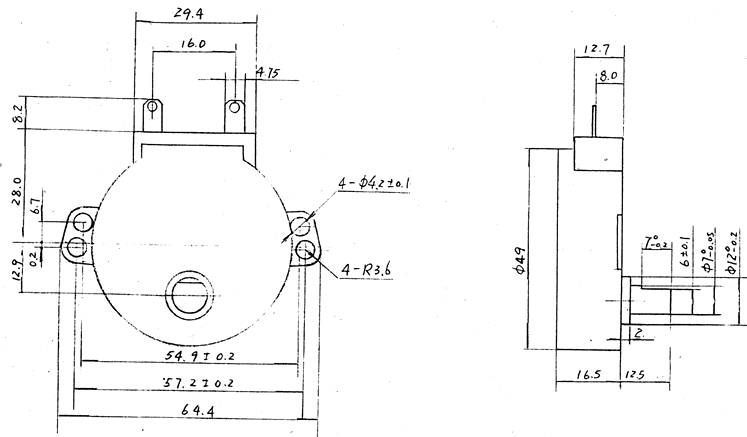

50TYZ-E Magnetic Synchronous Motor

Technical Data:

rated voltage	V	220
rated frequency	Hz	50/60
input power	W	2.5/2.1
output speed	r/min	2.5/3	4.1/5	5/6	15/18	30/36
output torpue	N.cm min	50/41.7	30/25	25/20.8	8.2/6.8	4.1/3.4
rotation direction		CW,CCW,CW/CCW
Operation voltage changed with user demand(12--220V)
Output shaft diameter and made with user demand

Major applications:

Air-conditioner turn leaf motor,Micro-wave stoven turn plate motor.

Click the drawing for bigger image

TOP

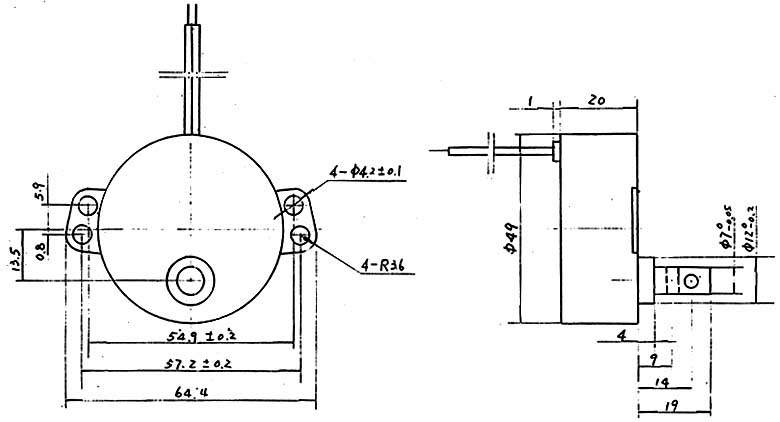

50TYZ-F Permanent Magnetic Synchrons Motor

Technical Data:

rated voltage	V	220
rated frequency	Hz	50/60
input power	W	4.5/3.75
output speed	r/min	2.5/3	4.1/5	5/6
output torque	N.cm min	106.6/88.8	65/54.2	53/44.2
rotation direction		CW,CCW,CW/CCW
Operation voltage changed with user demand (12-220V)
output shaft diameter and length made with user demand

Major applications:

Air-conditioner, Micro-wave stoven(other uses are same as those of 50TYZ motor)

Click the drawing for bigger image

TOP

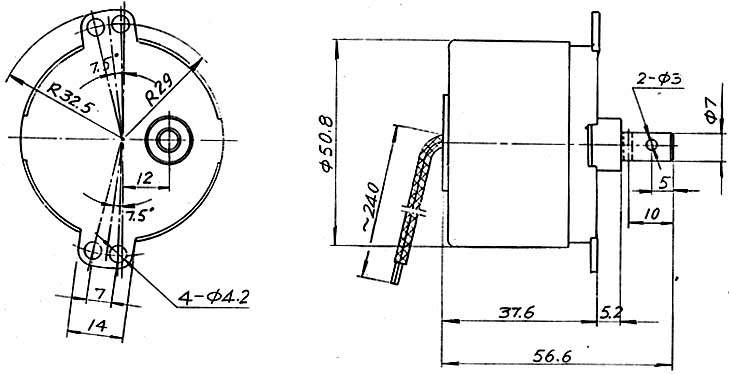

50JTYZ Magnetic Synchronous Motor

Technical Data:

rated voltage	V	220
rated frequency	Hz	50/60
input power	W	6/5
output speed	r/min	6/7.2	15/18	20/24	34/41	40/48	60/72	180/216
output torpue	N.cm min	75/62.5	30/25	22/18.3	13/10.8	11.1/9.25	7.5/6.25	2.4/2
rotation direction		CW,CCW,CW/CCW

Major applications:

Used in electric curtain, small stage curtain, stage lamp, electric machine and automatic instrument and metre.

Click the drawing for bigger image

TOP

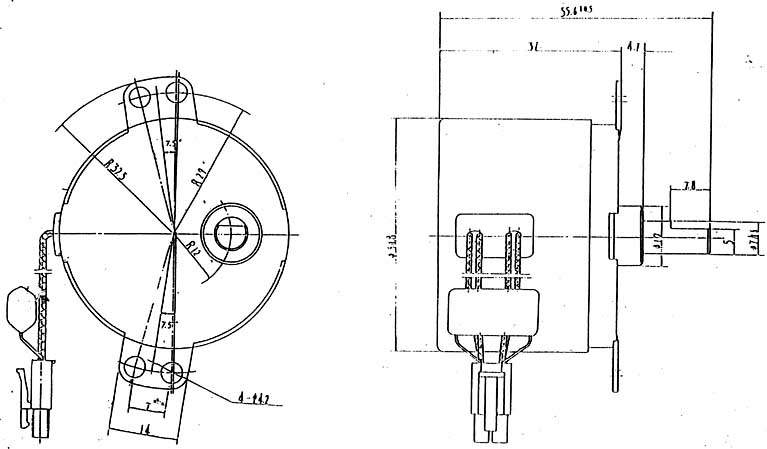

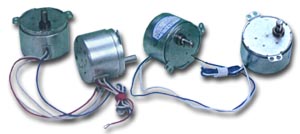

50KTYZ Magnetic Synchronous Motor

Technical Data:

rated voltage	V	220
rated frequency	Hz	50
input power	W	6
output speed	r/min	5	12.5	16.7	28.4	33.3	50	150
output torpue	N.cm	114min	45min	34min	20min	17min	11.4min	3.8min
output torpue	N.cm	196min	77.4min	57.8min	34.3min	29.4min	19.6min	6.5min
rotation direction		Dual direction control

Major applications:

Used in electric curtain, small stage curtain, stage lamp, electric machine and automatic instrument and metre.

TOP

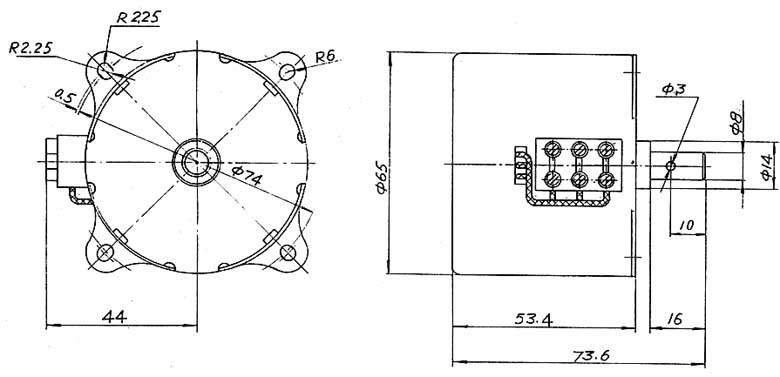

65KTYZ type single phase reversible permanent magnetic synchronous motor

Technical Data:

rated voltage	V	220
rated frequency	Hz	50
input power	W	14
output speed	r/min	5	14	30	40	60	80	109
output torpue	N.cm	250min	100min	50min	37min	25min	18.5min	13.5min
rotation direction		Dual firection control

Major applications:

Used in electric curtain, small stage screen, light in dancinghall, automation, electric transit instrument and electric equipment.

Click the drawing for bigger image

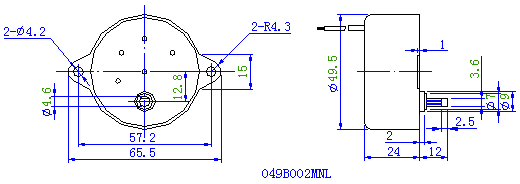

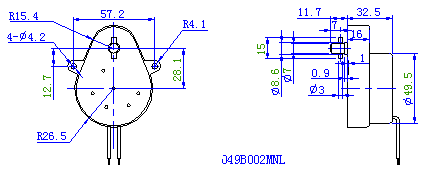

Pear Shape Permanent Magnetic Synchronous Motor 49B002MNL

Model

Rated
Voltage

Freq.

Current

Input
Power

Output
Speed

Output
Torque

No Load Starting Torque

Insulation
Resistant

Noise

Temp.
Rise

Insulation
Class

Rotation
Direction

049B002MNL-P

120V

60HZ

0.04A

4.5W

2RPM

250Oz-In

90V

>100M

<45DB

<60K

CW/CCW

049B003MNL-P

120V

60HZ

0.04A

4.5W

3RPM

150Oz-In

90V

>100M

<45DB

<60K

CW/CCW

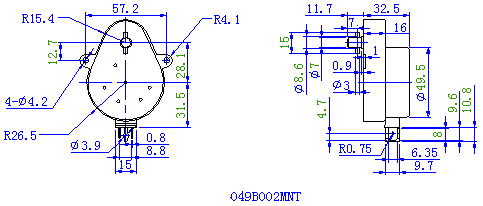

Pear Shape Permanent Magnetic Synchronous Motor 49B002MNT

Model

Rated
Voltage

Freq.

Current

Input
Power

Output
Speed

Output
Torque

No Load Starting Torque

Insulation
Resistant

Noise

Temp.
Rise

Insulation
Class

Rotation
Direction

049B002MNT-P

120V

60HZ

0.04A

4.5W

2RPM

250Oz-In

90V

>100M

<45DB

<60K

CW/CCW

049B003MNT-P

120V

60HZ

0.04A

4.5W

3RPM

150Oz-In

90V

>100M

<45DB

<60K

CW/CCW

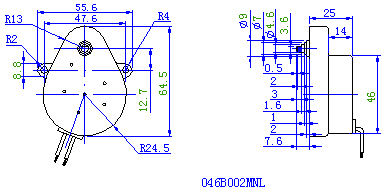

Pear Shape Permanent Magnetic Synchronous Motor 46B002MNL

Model

Rated
Voltage

Freq.

Current

Input
Power

Output
Speed

Output
Torque

No-load
Satrting
Voltage

Insulation
Resistance

Noise

Temp.
Rise

Insu.
Class

Rotation

46B002MNL-P

120V

60HZ

0.04A

4.5W

2RPM

150Oz-In

90V

>100M

<45DB

<60K

CW/CCW

46B005MNL-P

120V

60HZ

0.04A

4.5W

5RPM

50Oz-In

90V

>100M

<45DB

<60K

CW/CCW

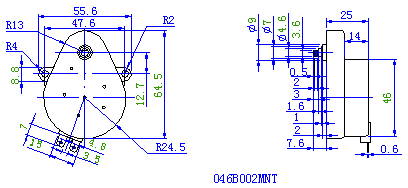

Pear Shape Permanent Magnetic Synchronous Motor 46B002MNT

Model

Rated
Voltage

Freq.

Current

Input
Power

Output
Speed

Output
Torque

No-load
Satrting
Voltage

Insulation
Resistance

Noise

Temp.
Rise

Insu.
Class

Rotation

46B002MNT-P

120V

60HZ

0.04A

4.5W

2RPM

>150Oz-In

90V

>100M

<45DB

<60K

CW/CCW

46B005MNT-P

120V

60HZ

0.04A

4.5W

5RPM

>90Oz-In

90V

>100M

<45DB

<60K

CW/CCW

Pear Shape Permanent Magnetic Synchronous Motor M502

Model Freq. Operating
Voltage Operating
Temp. Input
Power Output
Torque Insulation
Resistance Insulation
Strength Insulation
Class Temp.
Rise Rotation

M502 50/60HZ 110-120/220-240V -10~+150 <4W >1.2NM 100M 1500V/1Min H <60K CW/CCW

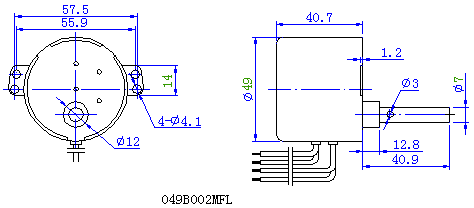

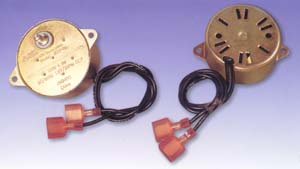

Permanent Magnetic Synchronous Motor 49B002MFL(Reversible)

Model

Rated
Voltage

Freq.

Current

Input
Power

Output
Speed

Output
Torque

No-load
Satrting
Voltage

Insulation
Resistance

Noise

Temp.
Rise

Insu.
Class

Rotation

49B002MFL

120V

60HZ

0.03A

4.0W

2RPM

180Oz-In

90V

>100M

<45DB

<60K

Reversible

49B020MFL

120V

60HZ

0.05A

4.0W

20RPM

18Oz-In

90V

>100M

<45DB

<60K

Reversible

Permanent Magnetic Synchronous Motor 49B002MNL

Model

Rated
Voltage

Freq.

Current

Input
Power

Output
Speed

Output
Torque

No-load
Satrting
Voltage

Insulation
Resistance

Noise

Temp.
Rise

Insu.
Class

Rotation

49B002MNL

120V

60HZ

0.035A

4.3W

2RPM

150Oz-In

90V

>100M

<45DB

<60K

CW/CCW

49B001MNL

120V

60HZ

0.035A

4.3W

1RPM

250Oz-In

90V

>100M

<45DB

<60K

CW/CCW

Permanent Magnetic Synchronous Motor 59B002MFL

Model

Rated
Voltage

Freq.

Current

Input
Power

Output
Speed

Output
Torque

No-load
Satrting
Voltage

Insulation
Resistance

Noise

Temp.
Rise

Insu.
Class

Rotation

59B002MFL

120V

60HZ

0.05A

4.0W

2RPM

250Oz-In

90V

>100M

<45DB

<60K

CW/CCW

59B020MFL

120V

60HZ

0.05A

4.0W

20RPM

25Oz-In

90V

>100M

<45DB

<60K

CW/CCW

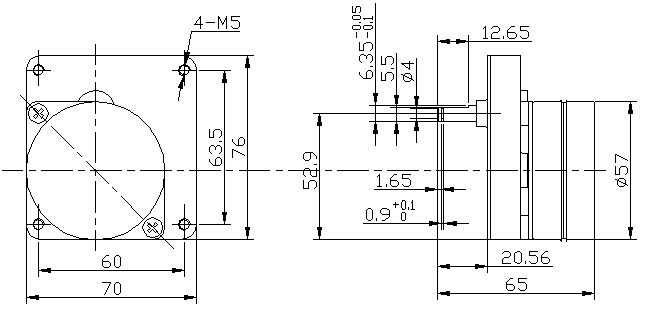

Model	Voltage (V)	Frequency (Hz)	Speed scale	Torque (N.m)	Speed (r/min)
57TYJ01	115	60	69.7:1	2	4.3
57TYJ02	220	50	58.5:1	2	4.27
57TYJ03	100	60	69.7:1	2	4.3

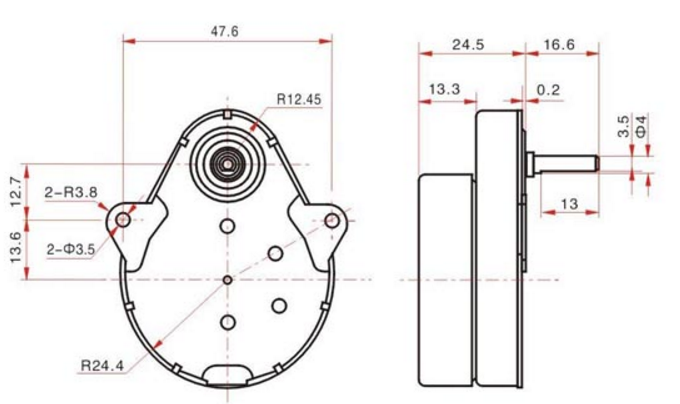

Ice Maker Synchronous Motor

Voltage	Frequency	Input Power	Input Current(mA)	Starting voltage	Temperature Rise	Noise Level(dB)	Rotating Direction	Rated Speed(rpm)	RatedTorque(Kg.cm)
24	50/60HZ	3.5W max.	300 Max	20.4	60K max	45Max	CW/CCW	0.83/1	17
220-240	50/60HZ	3.5W max	25 Max	187	60K max	45Max	CW/CCW	0.83/1	17

CUSTOMER DESIGN:
