42HS SERIES DIGITAL  LINEAR ACTUATOR

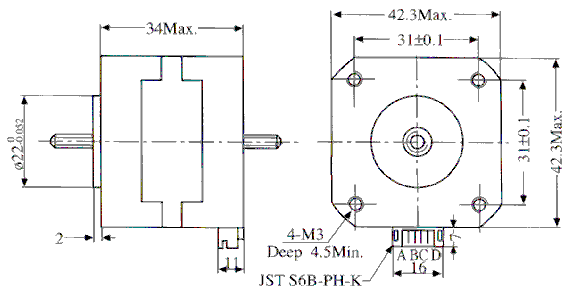

Outline Drawing:


Technical Specification:


Model	42HS0002A
Step angle degree	1.8 degree
Motor length	34mm
Maximum force	2kg
Linear travel per step	0.01mm
Lead wire number	4
Rated current	0.4A
Phase resistance	30Ohm
Phase inductance	37mH
Rotor Inertia	38g.cm^2
Detent Torque	120g.cm
Motor weight	200g

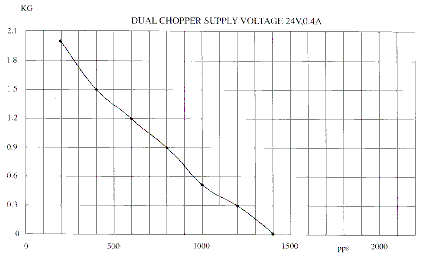

42HS0002A Series T-f performance curve
