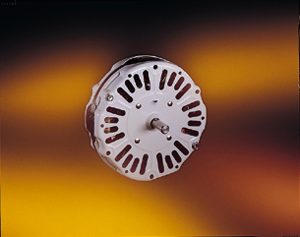

Unidirectional - Open Frame - 1,000
RPM
Options include: single or multispeed,
100 to 240 VAC, 50 or 60 Hz., 3/8 or 1/2-inch diameter shaft, 1/25 to 1/6
HP.
Dimension A varies from 2 1/8 to 3
5/8 inches.

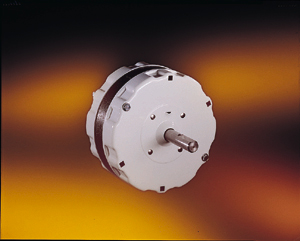

Unidirectional - Totally Enclosed
Frame - 1,000 RPM.
Options include: single or multispeed,
100 to 240 VAC, 50 or 60 Hz., 3/8 or 1/2-inch diameter shaft, 1/40 to 1/10
HP.
Dimension A varies from 1 3/4 to 2
1/2 inches.
Unidirectional - Maximum Open Frame
- 1,000 RPM.
"Thinline" design for use in applications
where space is limited. Options include: single or multispeed, 100
to 240 VAC, 50 or 60 Hz., 5/16 or 3/8-inch diameter shaft, 1/40 to 1/15
HP.
TYPICAL APPLICATIONS: fans,
humidifiers, dehumidifiers, blowers, range hoods,small appliances, and
heating, ventilation and air conditioning equipment.
