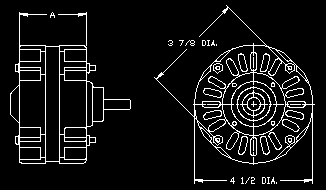

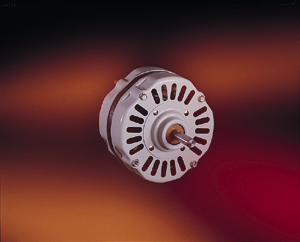

Unidirectional - Open Frame - 1,500
RPM
Options include: single or multispeed,
100 to 240 VAC, 50 or 60 Hz., 5/16, 3/8 or 1/2-inch diameter shaft, 1/50
to 1/8 HP.
Dimension A varies from 2 1/4 to 3
3/4 inches.

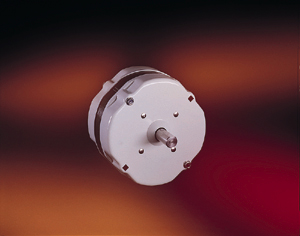

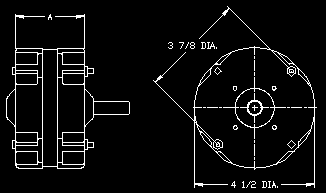

Unidirectional - Totally Enclosed Frame - 1,500 RPM.
Options include: single or multispeed, 100 to 240 VAC, 50 or 60 Hz.,
5/16, 3/8 or 1/2-inch diameter shaft, 1/50 to 1/15 HP.
Dimension A varies from 2 1/4 to 3
1/4 inches.

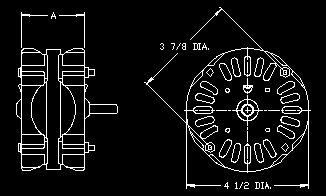

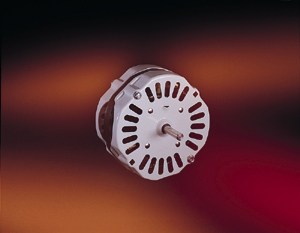

Unidirectional - Maximum Open Frame - 1,500 RPM.
Options include: single or multispeed, 100 to 240 VAC, 50 or 60 Hz.,
5/16, 3/8 or 1/2-inch diameter shaft, 1/50 to 1/20 HP.
TYPICAL APPLICATIONS: fans,
blowers, humidifiers, dehumidifiers, range hoods,air purifiers, small appliances,
compressors, gearhead drives, pumps, and heating and ventilation equipment.
