ZJTEX ELECTRIC MOTOR Commutator Motor for ROLLING Washing Machine Double/Tri Speed Motor for ROLLING Washing Machine

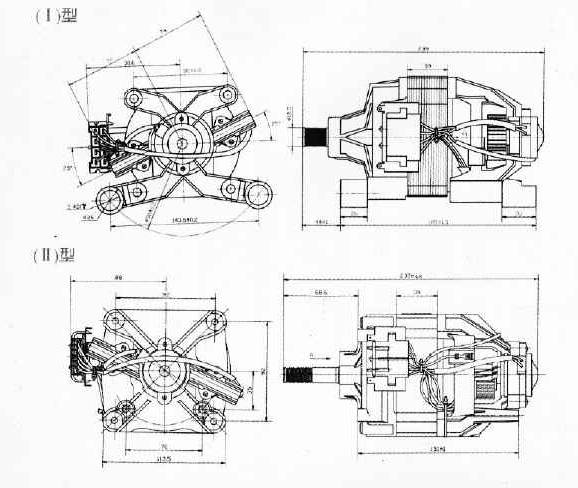

1.Commutator Motor for ROLLING Washing Machine HCD63 Series commutator series-speed control motor produced with equipment imported from Italy in 1996 is a kind of electromechanic product which owns advanced and new technology.It is controlled by integrated circuit,feedbacked by tachometer generator,adjusted by specific adjustable-speed system.This kind of motor mainly used in senior Rolling washing machine and adjustable-speed steady-operation mechanical equipment.This motor used by all major rolling washing machine manufacturer both dometic and abroad.
	HCD63A	HCD63B
VOLTAGE(V)	220	220
FREQUENCY(HZ)	50	50
SPEED(RPM)	450-13000	450-13000
INSULATION GRADE	F	F
OUTPUT POWER (HIGH SPEED)	225W	320W
OUTPUT POWER (LOW SPEED)	85W	85W
CURRENT(HIGH SPEED)	2.0A	2.5A
CURRENT(LOW SPEED)	3.5A	4.0A

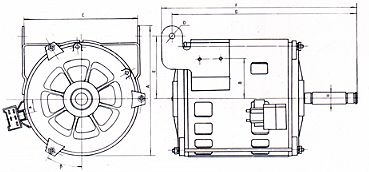

2.Double/Tri Speed Motor for ROLLING Washing Machine We use imported production line from Italy to produce double speed,adjustable double speed,tri-speed motors.
Code	Model	HZ	Voltage (V)	Insulation Grade	Outputpower(w)				Current(A)				Speed(rpm)				Capacitor (Uf/V)
					Hi		Low		Hi		Low		Hi		Low
1	YXG162/2/12	50	220	B.F	200		70		3		1.1		2800		450		14/450
2	YXG162/2/12C	50	220	B.F	140		65		3.5		1.6		2800		400		14/450
3	YXG162/2/12C1	50	220	F	180		75		3.5		2.7		2800		400		20/450
4	YXG162/2/16.A.B.S	50	220	B.F	120		40		3		1.6		2800		330		20/450
5	YXG162/2/16C.D.F.E.H	50	220	F	170		69		3.5		1.6		2800		300		16/450
6	YXG162/2/16C1.E1	50	220	F	180		75		4		2.2		2800		300		20/16/450
7	YXG162/2/16G	50	220	F	150		45		3.2		1.3		2800		300		14/450
8	YXG162/2/12G	50	220	F	150		60		2.5		1.2		2800		440		12.5/450
9	YXG162/2/24G	50	220	H	150		30		3.2		2.5		2800		180		14/450
10	YXG162/2/4/24	50	220	H	180	250		50	6	3.5		1.8	2900	1450		180	14/450
11	YXG162/2/16C7	50	240	F	170		69		3.2		1.5		2800		300		16/450
12	YXG162/2/16A1	60	120	F	180		70		6.2		3.1		3500		400		55/250
13	YXG162/2/16C2	60	110	F	180		70		6.2		3.1		3400		350		66/250
14	YXG162/2/16C6	60	110	F	175		112.5		7		3.5		3500		380		65/250
15	YXG162/2/12C2	60	110	F	180		75		6.6		4.8		3400		500		80/250

	Two-speed Motor of Washing Machine
	data	YXG162/2/16	YXG162/2/16-A
	voltage/ frequency	220V/50Hz	220V/50Hz
	rated current	3.2/1.5A	3.1/1.7A	3.1/1.7A
	output power	180/70W	180/70W	250/80W
	efficinecy	30/25%	28/21%	36/28%
	speed	2850/330r/min	2870/330r/min	2840/310
	insulation grade	F	F	F
