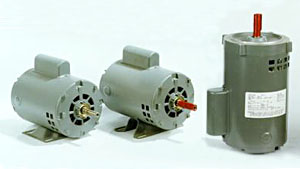

GPF SERIES: Key specification: Suitable for Air compressors & Pumps, Blowers, Conveyors or other applications requiring high torque. Single phase capacitor Start.   Open drip proof. Reversible rotation Ins class: B.

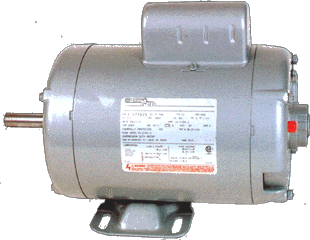

CS series motors are of steel-plate housing construction, Their performance and mounting dimensions are in conformity to IEC standard. They have light weight, small volume, attractive appearance etc.      The motors are suitable for compressor, small machine tools, air blowers, medical apparatus, household electric appliance etc.

Model	Output		Voltage(V)	Current(A)A	Speed r/min	Tst/Tn	Ist<=  A	Frequency(Hz)	Tm/Tn
	HP	W
Cs7112	1/2	370	220	3.4	2830	2.5	21	50	1.8
Cs7122	3/4	550		4.7	2830	2.5	29
Cs7114	1/3	250		3.2	1420	2.5	15
Cs7124	1/2	370		4.2	1420	2.5	21
Cs8012	1	750		6.0	2850	2.5	37
Cs8022	1 1/2	1100		8.4	2850	2.5	60
Cs8014	3/4	550		5.6	1420	2.5	29
Cs8024	1	750		6.8	1420	2.5	37
Cs90S2	3	2200		16.3	2875	2.5	120
Cs90S4	2	1500		12.5	1435	2.5	80

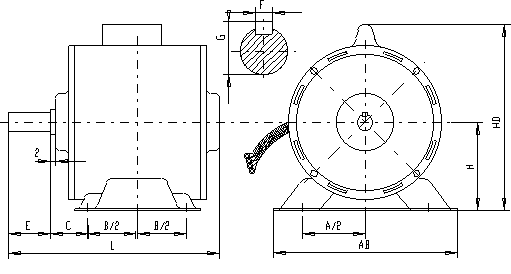

Frame No.	Mounting & Overall Dimensions(mm)
	A/2	B/2	C	D		E	F	G		H	K	KC	L	HD
71	56	45	45	F14	+0.008	40	5	11	0	70	10	25	240	180
					-0.003				-0.1
80	62.5	50	50	F19	+0.009	40	6	15.5	0	80	10	25	270	195
					-0.004				-0.1
90	70	62.5	56	F24	+0.009	40	8	20	0	90	10	25	315	215
					-0.004				-0.1

ZDM SERIES:


ZDM single-phase capacitor run asychronous motors are open motors with inside ventilation and permanently engaged capacitors.Current motor have lengths from 63 to 71mm.Motors are manufactured according to CE 1 2-3 standards,edition 7/1988-booklet 1110. Dynamic balanced motor shaft with double shielded life-lubricated bearing(working life more than 5000hrs) Open and self-ventilated induction motor,designed for continunous duty.The stator pack in made of low-leakage magnetic laminations(2.63Watt/kg).Stator windings are manufactured using wire with double class H insulation;heads carefully bound and shaped by pressure.Impregnation is done in a continuous cycle by PREHEATING-IMMERSION BAKING with extremely pure ideally-polyester resin,motors insulation is class F . This gives a high quality winding with excellent insulation and heat transmission properties.The rotor is squirrel-cage type,the capacitor is supplied as standard,surface protection of the electric motor assembly is achieved by a complete treatment cycle,including rust-proofing,pickling,phosphatizing,passivation,two coat paint finish applied by and electrostatic process and oven baked. IP44 230V/50HZ,other voltage and 60HZ is also available.
