Hard Ferrite Magnet

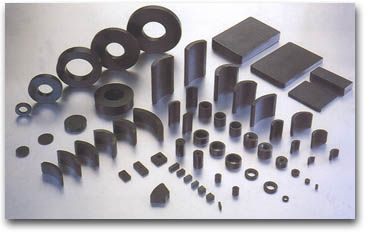

Ferrite magnets are more commonly referred to as ceramic magnets. They are mostlycomposed of strontium and Iron oxide (SrO . 6Fe2O3) and offer solid performancewith their low cost, higher coercive force than alnico and low recoil permeability. They  are widely used for loudspeakers, small motors and holding devices.


              Characteristics

              * Strong resistance to corrosion.
              * Easy to magnetize, thus allowing magnetization after assembly.
              * Lower energy products than alnico or rare earth magnets.
              * Very stable when exposed to temperature or stray fields

Magnetic Properties of HD-Magnet Hard Ferrite
Material
Code




Residual
Flux Density


Br
[
Gs
mT
]


Coercive Force


[
Oe
KA/m
]


Max.Energy Product
(BH) max


[
MGOe
KJ/m3
]


Temp.Coeff.
(%/ °C)
Density
(g/cm3)
bHc
iHc
DBr
DT
X100/Br(20°C)

  Y10T 2000
1600-2000
>2550
0.8-1.2
-0.18-0.19
4.5-4.9
200
128-160
>203
6.4-9.6
  Y15
2800-3600
1600-2400
>2400
1.8-2.2
-0.18-0.19
4.5-4.9
280-360
128-191
>191
14.3-17.5
  Y25
3500-3900
1900-2600
>2000
2.8-3.2
-0.18-0.19
4.5-4.9
350-390
151-207
>160
22.3-25.5
  Y25BH
3600-3900
2200-2700
>2800
3.0-3.4
-0.18-0.19
4.5-4.9
360-390
175-215
>223
23.9-27.1
  Y30
3800-4000
2100-2700
>2500
3.3-3.7
-0.18-0.19
4.5-4.9
380-400
167-215
>199
26.3-29.5
  Y30H
3700-3900
3300-3600
3500-3900
3.2-3.6
-0.18-0.19
4.5-4.9
370-390
263-287
279-311
25.5-28.7
  Y30BH
3800-4000
2800-3000
>2900
3.4-3.8
-0.18-0.19
4.5-4.9
380-400
223-239
>231
27.1-30.3
  Y35
4000-4200
2100-2500
>2100
3.8-4.0
0.18-0.19
4.5-4.9
400-420
167-199
>167
30.3-31.9
  Y35BH
4000-4200
>3600
>3900
3.8-4.2
0.18-0.19
4.5-4.9
400-420
>287
>311
30.3-33.5
