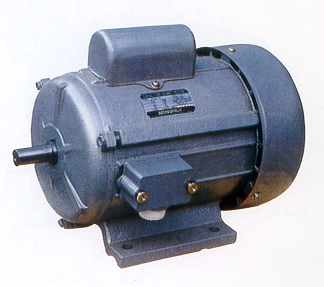

JY SERIES SINGLE-PHASE CAPACITOR STARTING MOTOR

The JY series single-phase capacitor start induction motor is suitable for any where a larger starting torque and the starting current to be limited are required, and is used as driving motor of air compressors, refrigerators, medical apparatus and other small machines in which full-load starting is demanded.

These series motors having 3 size numbers 09, 1 and 2 are of totally enclosed fan -cooled. The frames are made of cast iron or cast aluminum according to the requests.

Insulation class: E
Cooling type: IC0141
Rated frequency: 50HZ

PERFORMANCE SPECIFICATIONS

Frame Size	TYPE	Outoput		Rotating speed (R.P..M)	Power Factor(cos?)	Eff (%)	Max torque Rated torque	Starting torque Rated torque
Frame Size	TYPE	(W)	(HP)	Rotating speed (R.P..M)	Power Factor(cos?)	Eff (%)	Max torque Rated torque	Starting torque Rated torque
2	JY2A-2	1100	1.5	2850	0.77	71	1.8~2	2~3.5
	JY2A-4	750	1	1400	0.68	69	1.8~2	2~3.5
	JY2B-2	750	1	2850	0.75	70	1.8~2	2~3.5
	JY2B-4	550	3/4	1400	0.68	67	1.8~2	2~3.5
1	JY1A-2	550	3/4	2800	0.72	66	1.8~2	2~3.5
	JY1B-2	370	1/2	2800	0.72	66	1.8~2	2~3.5
	JY1A-4	370	1/2	1400	0.62	64	1.8~2	2~3.5
	JY1B-4	250	1/3	1400	0.62	60	1.8~2	2~3.5
09	JY09A-2	250	1/3	2800	0.72	63	1.8~2	2~3.5
	JY09B-2	180	1/4	2800	0.72	60	1.8~2	2~3.5
	JY09A-4	180	1/4	1400	0.62	56	1.8~2	2~3.5

Note: the motor is designed according to power supplies 220V/110V, 50Hz. Special design may be accommodated with the customers, particular requirements as 230V/50Hz or 220V/110V,60Hz etc.
