Plastic fan and blower wheel for air conditioner |

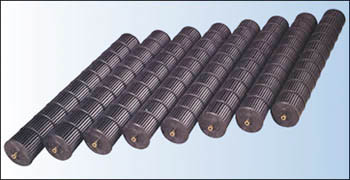

1.Crossflow fan
¹| Model | Diameter(mm) | Length(mm) | Leaf Number | machine model |
|---|---|---|---|---|
| KT-GF8101 | 81 | 640 | 35 | KT-20GA |
| KT-GF8702 | 87 | 635 | 35 | KT-20GB |
| KT-GF9603 | 96 | 645 | 35(not even) | KT-30GA |
| KT-GF9604 | 96 | 795 | 35(not even) | KT-45GA |
| KT-GF8605 | 86 | 640 | 35(not even) | KT- 25GB |
| KT-GF9106 | 91 | 650 | 35 | KT-30GB |
| KT-GF9307 | 93 | 640 | 35 | KT-25GA |
| KT-GF9608 | 96 | 645 | 35 | KT-28GA |
| KT-GF7609 | 76 | 630 | 35 | KT-23GA |
| KT-GF8110 | 81 | 300 | 35 | DNP-15 |
| KT-GF10611 | 106 | 647 | 35 | KT-258GA |
| KT-GF10812 | 108 | 960 | 35 | KT-70GA |
| KT-GF7613 | 76 | 520 | 35 | KT- 18GA |
| KT-GF9614 | 96 | 645 | 35(slanting) | KT-28GA |
| KT-GF9315 | 93 | 670 | 35(slanting) | KT-33GA |
| KT-GF9116 | 91 | 670 | 35 | KT-30GC |
| KT-GF9117 | 91 | 670 | 35(slanting,not even) | KT-30GC |

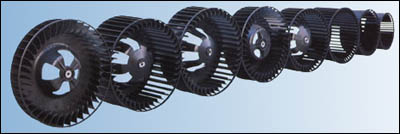

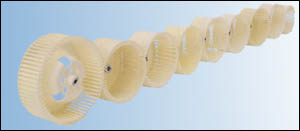

2.Cnetrifugal wheel
| Model | Diameter(mm) | Height | Shaft diameter |
|---|---|---|---|
| KT-LF31701 | 317 | 130 | 12 |
| KT-LF31702 | 317 | 100 | 12 |
| KT-LF28603 | 286 | 110 | 12 |
| KT-LF28604 | 286 | 80 | 12 |
| KT-LF16805 | 276 | 168(CCW) | 12 |
| KT-LF316806 | 276 | 168(CW) | 12 |
| KT-LF16807 | 236 | 110 | 12 |
| KT-LF19008 | 190 | 100 | 10 |
| KT-LF18810 | 180 | 90 | 10 |
| KT-LF30011 | 300 | 130 | 12 |
| KT-LF38012 | 380 | 180 | 12 |
| KT-LF33813 | 338 | 150 | 12 |
| KT-LF17514 | 175 | 90 | 10 |
| KT-LF27815 | 278 | 165 | 10 |
| KT-LF22616 | 226 | 110 | 10 |
| KT-LF22617 | 226 | 120 | 10 |
| KT-LF22618 | 226 | 125 | 10 |
| KT-LF22619 | 226 | 80 | 10 |
| KT-LF38620 | 386 | 180 | 15 |
| KT-LF38621 | 386 | 130 | 15 |
3.Axial fan
| Model | Diameter(mm) | Height | Shaft diameter |
|---|---|---|---|
| KT-ZF60001 | 60 | 190 | 15 |
| KT-ZF38002 | 380 | 125 | 10 |
| KT-ZF45003 | 450 | 155 | 12 |
| KT-ZF41504 | 415 | 120 | 15 |
| KT-ZF32505 | 325 | 100 | 12 |
| KT-ZF36006 | 360 | 110 | 10 |
| KT-ZF28007 | 280 | 70 | 8 |
| KT-ZF31008 | 310 | 100 | 8 |
| KT-ZF53009 | 530 | 190 | 14 |
| KT-ZF36710 | 367 | 130 | 12 |
| KT-ZF34511 | 345 | 135 | 10 |
| KT-ZF36012 | 360 | 130 | 10 |
| KT-ZF34513 | 345 | 125 | 10 |
| KT-ZF31014 | 310 | 83 | 10 |
| KT-ZF46015 | 460 | 160 | 12 |
| KT-ZF44016 | 440 | 165 | 12 |
