FAN MOTOR |
Suitable for
cold drinker,condenser,and other small fan
|
|

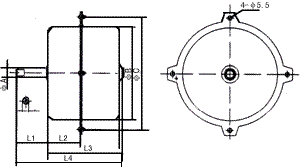

| Model | L1 | L2 | L3 | L4 | A | B | C |
| YDK.F15-2F | 21 | 31 | 65 | 87.5 | 7.8 | 82 | 96 |
| YDK.F10-4F | 21.9 | 31 | 62 | 85 | 7.8 | 82 | 96 |
| YDK.F15-4F | 28.3 | 34 | 66 | 93.3 | 8 | 82 | 96 |
| YDK.F20-4F | 23.3 | 35.5 | 71 | 97.5 | 8 | 82 | 96 |
| Model | Power
W |
Phase | Volts
V |
Freq.
Hz |
Speed
rpm |
Capacitor
m F/450V |
| YDK.F15-2F | 15 | 2 | 220 | 50 | 2700 | 1.5 |
| YDK.F10-4F | 10 | 4 | 220 | 50 | 1300 | 1 |
| YDK.F15-4F | 15 | 4 | 220 | 50 | 1300 | 1.2 |
| YDK.F20-4F | 20 | 4 | 220 | 50 | 1300 | 1.5 |
 |
 |
Technical Data
| Model | Power
W |
Phase | Volts
V |
Freq.
Hz |
Current
A |
Speed
rpm |
| LS71E | 180 | 3 | 380 | 50 | 0.35 | 1400 |
| LSD71F | 120 | 1 | 220 | 50 | 1.0 | 1400 |
 |
 |
| Model | Power
W |
Phase | Volts
V |
Freq.
Hz |
Current
A |
Speed
rpm |
| LS63E | 90 | 3 | 220/380 | 50/60 | 0.35/0.30 | 1350/1640 |
| LS63F | 120 | 3 | 220/380 | 50/60 | 0.45/0.35 | 1350/1640 |
| LS63G | 180 | 3 | 220/380 | 50/60 | 0.65/0.60 | 1350/1640 |
| LSD63E | 90 | 1 | 220 | 50 | 0.6 | 1350 |
| LSD63F | 120 | 1 | 220 | 50 | 0.9 | 1350 |
 |
 |
| Model | Power
W |
Phase | Volts
V |
Freq.
Hz |
Current
A |
Speed
rpm |
| LSF63E | 90 | 3 | 380 | 50 | 0.38 | 1400 |
| LSF63F | 120 | 3 | 380 | 50 | 0.45 | 1400 |
| LSDF63E | 90 | 1 | 220 | 50 | 0.6 | 1400 |
| LSDF63F | 120 | 1 | 220 | 50 | 0.9 | 1400 |
 |
 |
| Model | Power
W |
Phase | Volts
V |
Freq.
Hz |
Current
A |
Speed
rpm |
| LSF71E | 250 | 3 | 380 | 50 | 0.83 | 1400 |
| LSF71F | 550 | 3 | 380 | 50 | 1.5 | 1400 |
| LSF71G | 750 | 3 | 380 | 50 | 2 | 1400 |
