Electric vehicles

zoom inclick to zoom zoom inclick to zoom

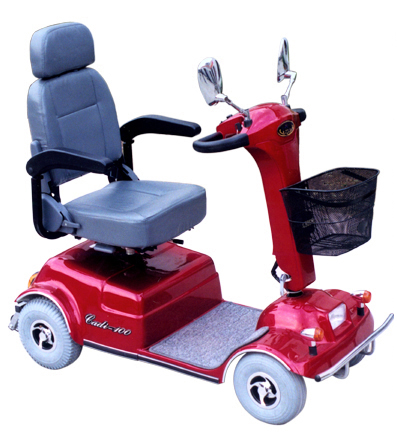

Cadi-100 4-wheel Electric Scooter

Dimension:1330x640x1170mm
Ground clearance :125mm
Net weight:96kgs(include 30kgs battery)
Max forward speed:6-12kms(optional)
Max backward soeed:2.4-4.8kms(optional)
Max climbing:12 degree
Max load:140kgs
Turn radius:1m
Motor:24VDC,300W
Distance one charge:55km(38AH)/40km(30AH)
Charger:110-230VAC(Optional)/24VDC-4A

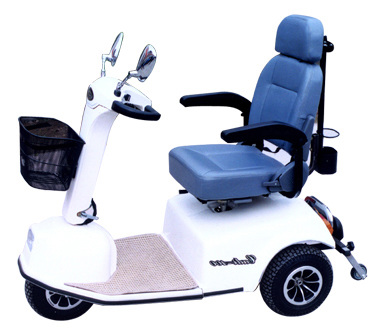

 Cadi-101 3-wheel Electric Scooter

Dimension:1330x640x1170mm
Ground clearance :125mm
Net weight:96kgs(include 30kgs battery)
Max forward speed:6-12kms(optional)
Max backward soeed:2.4-4.8kms(optional)
Max climbing:12 degree
Max load:140kgs
Turn radius:1.4m
Motor:24VDC,300W
Distance one charge:55km(38AH)/40km(30AH)
Charger:110-230VAC(Optional)/24VDC-4A
zoom inclick to zoom zoom inclick to zoom

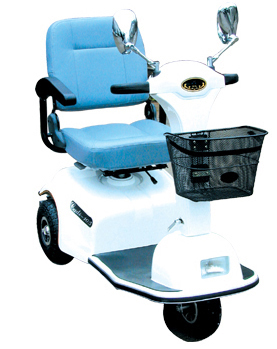

Cadi-103 3-wheel Electric Scooter

Dimension:1385x580x1000mm
Ground clearance :115mm
Net weight:80kgs(include 30kgs battery)
Max forward speed:6-12kms(optional)
Max backward soeed:2.4-4.8kms(optional)
Max climbing:12 degree
Max load:140kgs
Turn radius:0.85m
Motor:24VDC,300W
Distance one charge:45km(33AH)
Charger:110-230VAC(Optional)/24VDC-4A

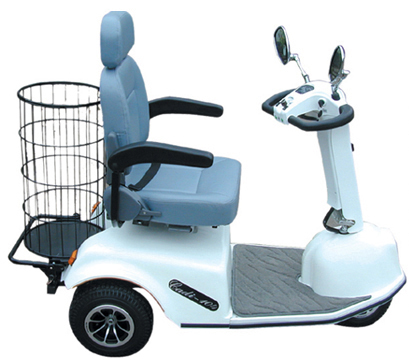

 Cadi-104 3-wheel Electric Golf Cart

Dimension:1430x677x1210mm
Ball basket:dia.300*H600mm
Ground clearance :150mm
Net weight:103.95kgs(include 30kgs battery)
Max forward speed:6-12kms(optional)
Max backward soeed:2.4-4.8kms(optional)
Max climbing:25 degree
Max load:150kgs
Turn radius:1m
Motor:24VDC,450W(rare earth magnet motor)
Distance one charge:50km(38AH)/38km(30AH)
Charger:110-230VAC(Optional)/24VDC-4A
zoom inclick to zoom

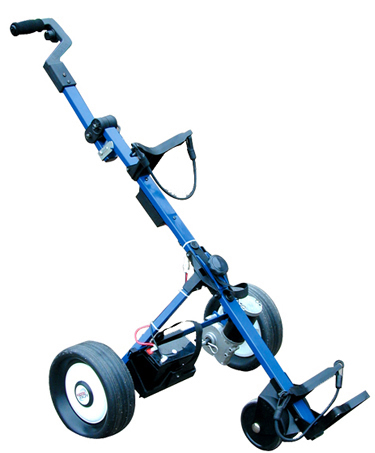

Cadi-105 Push Golf Cart

Fold dimension:355x690x560mm
Max.speed 6.6km/h
Motor:12V,120W
Weight:12.9kgs

 Cadi-105 Push Golf Cart( after folded)





Accessaries:

RPQ-36 controller            RPQZ-36 controller

Input voltage 36VDC
Max load current 20A
Rated power 200W-300W
Overload protecting current 17A

 RPQ-24 controller               RPQZ-24 controller

Input voltage 24VDC
Max load current 17A-30A
Rated power  140W-280W
Overload protecting current: 13A-17A
Four-wheel electric sportmobile controller
RP50X plusminus impulse charger

Input voltage 90-250VAC
Input frequency 50-60HZ
Output voltage 24VDC
Output current 1A-6A

 RP50Y intellective charger

Input voltage 90-250VAC
Input frequency 50-60HZ
Output voltage 24VDC or  36VDC
Output current 1A-6A
A.electromtion timing handgrip
B.electromtion electricity hold
MB-1 model counteracdusation make fash handgrip be the same with 24,26 electromtion
MB-1 model just cortrol fash handgrip bet the same with 24,26electromtion 		 DB-1 model ,Nominal Open,
DB-1 model ,Nominal Close
A.electromtion electricity mete display
B.electromtion electricity mete display
TR-1model electricity mete display be the same with 36V electromtion  TR-2model electricity mete display be the same with 24V electromtion



RPZ-01
 1,Third Gear Adjustable Height
2,90°tip-up
3,Front and back Angle Adjustable
4,Adjustable Seat Belt
5,Forward and backward handle
6,360°rotatable and locked automatic

RPZ-02

RPZ-03
“Stick Holder”
