ZY4052

ZJTEX ELECTRIC MOTOR
ZY40,ZY52 DC MOTOR

This series DC motor was used in different bank machine,and other automatic machinery.

Model Voltage(V) Current(A) Duty Rated Speed(RPM) Rated Torque(mN,m) Output Power(W) Figure

ZY-40-01 24 1.8 S1 4200 65 28 Fig.3

ZY-40-01A 38 1.2 S1 4200 65 28 Fig.3

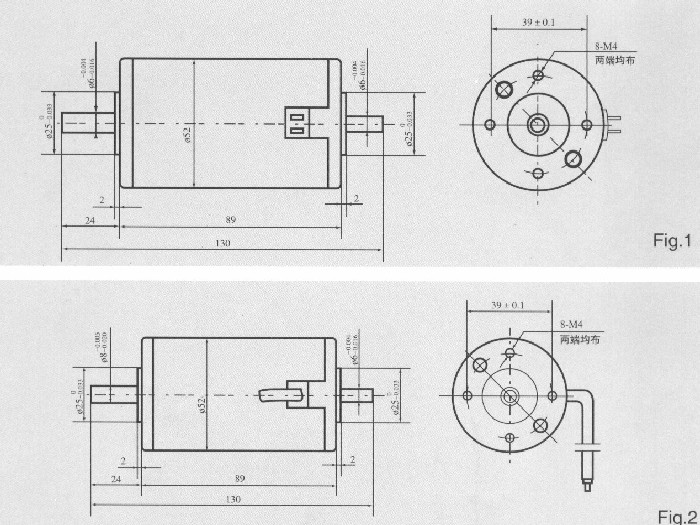

ZY-52-01 24 2 S1 2900 100 30 Fig.1

ZY-52-01A 24 5.5 S4(1s) 1200 300 Fig.2

ZY-52-01C 24 2.2 S1 2200 120 28

ZY-52-01D 24 2.2 S1 2200 120 28

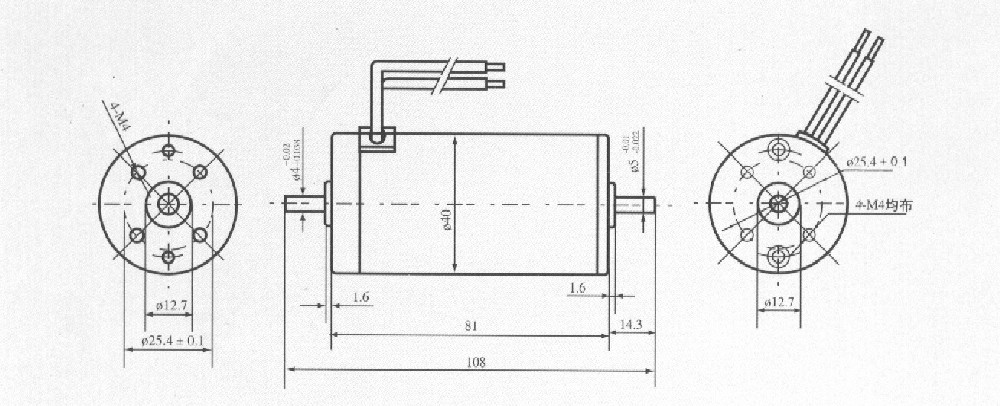

Fig.3

Model	Voltage(V)	Current(A)	Duty	Rated Speed(RPM)	Rated Torque(mN,m)	Output Power(W)	Figure
ZY-40-01	24	1.8	S1	4200	65	28	Fig.3
ZY-40-01A	38	1.2	S1	4200	65	28	Fig.3
ZY-52-01	24	2	S1	2900	100	30	Fig.1
ZY-52-01A	24	5.5	S4(1s)	1200	300		Fig.2
ZY-52-01C	24	2.2	S1	2200	120	28
ZY-52-01D	24	2.2	S1	2200	120	28
