ZJTEX ELECTRIC MOTOR
25JA3K/2430-1255 DC GEAR MOTOR

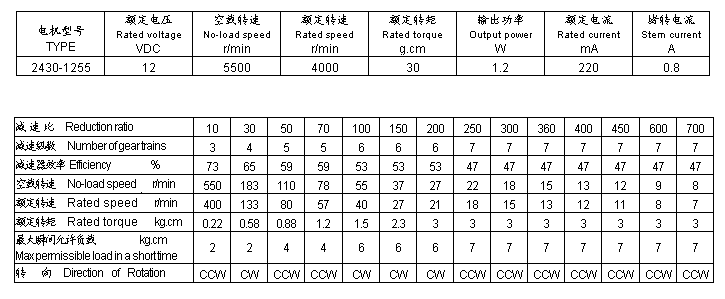

Motor Technical Data
Gear Motor Technical Data
Use condition
Temperature of condition : -10~+50กๆ
Comparatively humidity: <85%(25กๆ)
Figure
(1) Index of speed allow error กภ10%
(2) Can making other characteristics motor

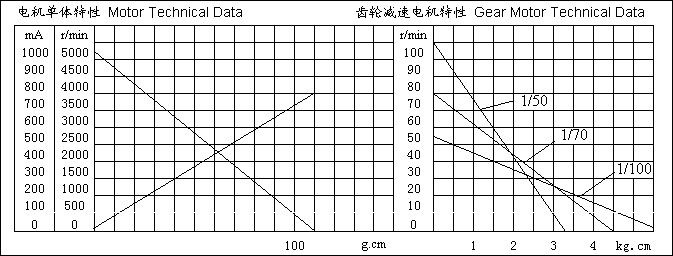

Motor Technical Data กกกกกกกกกกกกกกกกกกกกกกกก              Gear Motor Technical Data

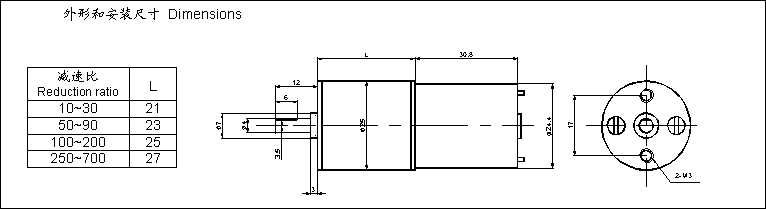

Dimensions
Download PDF file from here to read more clearly!
