ZJTEX ELECTRIC MOTOR
GEAR MOTOR 80JB80K/73110-2420(35W),80JB80K/73110-2430(59W)


Motor Technical Data
TYPE
Rated voltage
No-load speed
Rated speed
Rated torque
Output power
Rated current
VDC
r/min
r/min
kg.cm
W
A
73110-2420
24
2000
1600
2
35
2.4
73110-2430
24
3000
2400
2.4
59
3.5


Gear Motor Technical Data

35 W80JB50K/73110-2420 PM DC gear motors

Reduction ratio
3
5
7.5
12.5
15
25
30
50
75
Number of gear trains
1
2
2
2
2
3
3
4
4
Efficiency%
90
81
81
81
81
72
72
66
66
No-load speedr/min
667
400
267
160
133
80
67
40
27
Rated speedr/min
533
320
213
128
106
64
53
32
21
Rated torquekg.cm
5
8
12
20
24
36
43
66
80
kg.cm
Max permissible load in a short time
20
40
40
40
40
80
80
100
100
DirectionofRotation
CW,CCW
CW,CCW
CW,CCW
CW,CCW
CW,CCW
CW,CCW
CW,CCW
CW,CCW
CW,CCW

59 W80JB50K/73110-2430 PM DC gear motors

Reduction ratio
3
5
7.5
12.5
15
25
30
50
75
Number of gear trains
1
2
2
2
2
3
3
4
4
Efficiency%
90
81
81
81
81
72
72
66
66
No-load speedr/min
1000
600
400
240
200
120
100
60
40
Rated speedr/min
800
480
320
192
160
96
80
48
34
Rated torquekg.cm
6.4
9.7
14.5
24
29
43
50
79
80
kg.cm
Max permissible load in a short time
20
40
40
40
40
80
80
100
100
DirectionofRotation
CW,CCW
CW,CCW
CW,CCW
CW,CCW
CW,CCW
CW,CCW
CW,CCW
CW,CCW
CW,CCW



Use condition

Temperature of condition : -10~+50Centigrade

Comparatively humidity: <85%(25Centigrade)


Figure

1)Index of speed allow error +_10%

2)Can making other characteristics motor

Reduction ratio
L
3~15
35
25~150
45

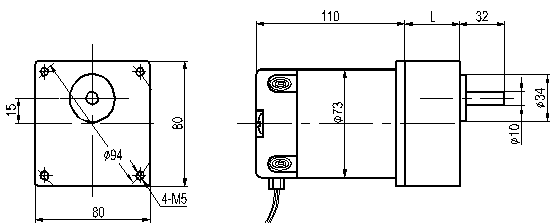

Dimensions
