ZJTEX ELECTRIC MOTOR
DC GEAR MOTOR 7670JB50K/2730-1273


Motor Technical Data


TYPE
Rated voltage
No-load speed
Rated speed
Rated torque
Output power
Rated current
Stem current
VDC
r/min
r/min
g.cm
W
mA
A
2730-1273
12
7300
4800
90
4
700Max
1.6


Gear Motor Technical Data
Reduction ratio
1000
1200
1500
1800
2500
3000
Number of gear trains
6
6
6
6
6
6
Efficiency(%)
50
50
50
50
50
50
No-load speed(rpm)
7
6
5
4
3
2.5
Rated speed(rpm)
4.8
4
3.2
2.6
2
1.6
Rated torque(kg.cm)
50
50
50
50
50
50
Direction of Rotation
CW
CW
CW
CW
CW
CW



Use condition

Temperature of condition : -10~+50Centigrade

Comparatively humidity: <85%(25Centigrade)

Figure

1)Index of speed allow error +_10%

2)Can making other characteristics motor

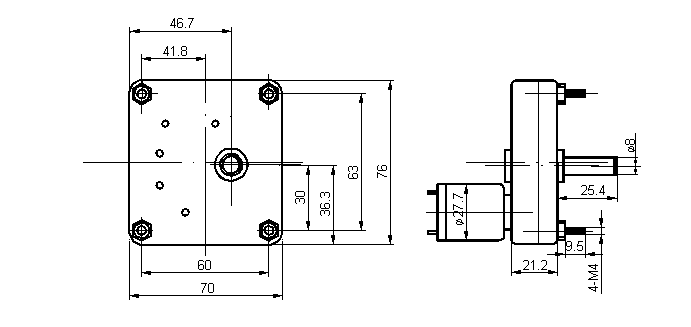

Dimensions
