ZJTEX ELECTRIC MOTOR STANDARD DC MOTOR

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)

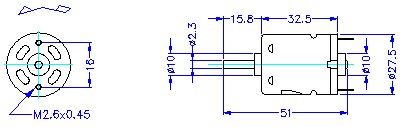

MD3-3745	1.2-3.6	3.6V  CONSTANT	12560	0.75	9910	2.55	0.77	55.7	5.67	61.81	3.67	264
MD3-3260	3.0-6.0	6.0V  CONSTANT	16400	0.52	13470	2.39	0.91	65.1	9.0	62.76	5.06	364
MD3-2495	4.5-9.0	6.0V CONSTANT	9800	0.32	7800	1.25	0.73	52.67	4.21	56.25	3.60	259
MD3-22135	6.0-12.0	12.0V  CONSTANT	14700	0.26	11960	1.14	0.99	71.4	8.76	64.20	5.32	383

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
MD5-2445	6.0-12.0	12.0V CONSTANT	24500	0.50	19850	2.05	1.11	79.7	16.23	65.98	5.84	420
MD5-2070	6.0-12.0	12.0V  CONSTANT	15700	0.30	12150	1.2	0.86	62.24	7.76	54.06	3.82	275
MD5-1885	12.0-18.0	12.0V  CONSTANT	12500	0.20	9820	0.74	0.74	53.5	5.39	60.73	3.48	250
MD5-12160	12.0-18.0	12.0V CONSTANT	5600	0.12	4000	0.30	0.47	34.29	1.41	39.1	1.66	120

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)

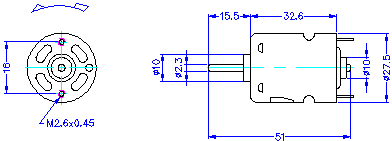

MD3F- 20155	6.0-12.0	12.0V  CONSTANT	11200	0.23	9000	0.85	0.95	68.15	6.46	63.36	5.42	390
MD3F- 2885	6.0-9.6	9.6V  CONSTANT	16100	0.45	13000	1.79	1.04	75.18	10.08	58.69	5.83	420
MD3F- 3270	6.0-7.2	7.2V CONSTANT	14800	0.55	12200	2.10	1.04	75.00	9.32	61.94	6.11	440
MD3F- 4044	3.6-4.8	4.8V  CONSTANT	15600	0.90	12800	3.40	1.11	80.00	10.26	63.64	5.97	430

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
MD5F- 07420	12.0-24.0	24.0V CONSTANT	4200	0.05	3100	0.08	0.37	27.00	0.87	45.31	1.47	1.06
MD5F- 10250	6.0-12.0	12.0V  CONSTANT	3400	0.06	2600	0.12	0.37	27.00	0.72	50.00	1.60	115
MD5F- 16120	6.0-12.0	12.0V  CONSTANT	8200	0.16	6200	0.46	0.63	45.00	8.88	52.17	2.50	180
MD5F- 2460	6.0-12.0	12.0V CONSTANT	17000	0.45	13700	1.45	1.06	76.16	10.75	61.80	5.56	400

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)

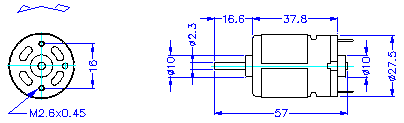

LD3-3745	3.0-6.0	6.0V  CONSTANT	13000	0.50	11000	2.6	1.096	78.87	8.9	57.06	7.117	510
LD3-2870	6.0-12.0	7.2V  CONSTANT	10400	0.32	8540	1.73	1.313	94.44	8.28	66.49	7.284	520
LD3-26100	6.0-12.0	12.0V  CONSTANT	12500	0.25	10670	1.34	1.323	95.17	10.42	64.81	9.035	650
LD3-22135	12.0-18.0	12.0V  CONSTANT	9300	0.18	7700	0.88	1.168	84.05	6.64	62.88	6.867	490

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
LD5-2445	6.0-12.0	12.0V  CONSTANT	15200	0.33	12640	1.63	1.259	90.56	11.75	60.04	7.492	539
LD5-2073	12.0-24.0	12.0V CONSTANT	9400	0.23	7570	0.78	1.080	77.67	6.04	64.45	5.560	400
LD5-16110	12.0-24.0	24.0V CONSTANT	13000	0.13	10610	0.58	1.108	79.78	8.69	62.64	6.042	435
LD5-12160	12.0-24.0	24.0V  CONSTANT	8500	0.08	6700	0.30	0.794	57.23	3.93	55.27	3.750	270

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)

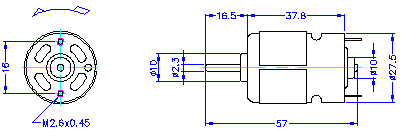

LD3F-16220	12.0-24.0	24.0V  CONSTANT	10500	0.12	8800	0.50	1.25	90.00	8.27	65.75	7.64	550
LD3F-26110	6.0-12.0	12.0V  CONSTANT	10400	0.28	8700	1.10	1.39	100.00	8.71	67.83	8.47	610
LD3F-3270	6.0-12.0	12.0V  CONSTANT	15800	0.50	13500	2.15	1.74	125.00	17.28	67.00	11.39	820
LD3F-4030	1.5-3.6	2.4V  CONSTANT	7700	0.85	6200	2.62	0.88	63.00	4.00	63.73	4.72	340

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY						STALL TORQUE
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	EFF
			rpm	A	rpm	A	oz-in	(g-cm)	W	%	oz-in	(g-cm)
LD5F-2445	6.0-12.0	12.0V  CONSTANT	13100	0.25	11000	1.08	1.18	85.00	9.00	69.20	7.01	505
LD5F-2265	6.0-12.0	12.0V CONSTANT	10000	0.23	8180	0.76	0.97	70.00	5.79	63.49	5.28	380
LD5F-1980	6.0-12.0	12.0V CONSTANT	8200	0.18	6580	0.57	0.88	63.00	4.26	62.27	4.44	320
LD5F-14140	12.0-24.0	24.0V  CONSTANT	9500	0.14	7800	0.41	1.11	80.00	6.40	65.47	5.56	400
