ZJTEX Axial AC Cooling Fan, equipped a shaded-pole motor, die-cast aluminum frame, and UL 94V-0 rated injection molded non-flammable thermoplastic impeller, is the most reliable AC Fan in the field. ZJTEX AC Fan is available in both life-lubricated ball bearing system and oil-impregnated sintered sleeve bearing system to meet the diverse needs of the market.

Application:
Game Machine, Copy Machine, Medical Equipment, Vending Machine, Packing Equipment, Air Conditioner, Heater, Manufacturing Equipment & Electric Products.

MOTOR : Reliable Shaded-Pole Motor Construction

FRAME : Die-Cast aluminum painted black for moisture and corrosion resistance

IMPELLER : Injection molded non-flack thermoplastic UL 94V-O Rating

BEARING : Precision, life-lubricated ball bearing system
Precision, oil-impregnated sintered sleeve bearing system

INSULATION : Class B integral ground system rated @ 120°C

INSULATION RESISTANCE : 500 Megohms minimum at 500VDC

DIELECTRIC STRENGTH : 1500VAC for one minute

SAFETY PROTECTION : Impedance protected

OPERATING TEMPERATURE : -10 to +70 °C

STORAGE TEMPERATURE : -40 to +70°C

OPERATING VOLTAGE : For 115V, ranged voltage from 85V to 125V.
For 220V, ranged voltage from 185V to 245V.

PROFESSIONAL DESIGN >

Should you need to enlarge operating range or have any other special requirements. We are willing to design accordingly.

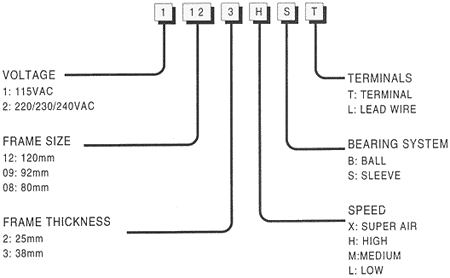

Part Number Discription:

8025 : 80x80x25mm

Model

P/N

Voltage
VAC

Bearing
Style

Current
AMP

Input
Watts

Speed
RPM

AirFlow
CFM

Pressure
Inch-H₂O

Noise
dBA

ZT11580AT

1082HSL

50/60

115

0.12/0.10

12/11

2300/2750

17/21

0.12/0.18

29/33

ZT11580AT

1082HBL

50/60

115

0.12/0.10

12/11

2450/2900

18/22

0.13/0.19

30/34.5

ZT23080AT

2082HSL

50/60

220/240

0.07/0.07

14/13.5

2300/2750

17/21

0.12/0.18

29/33

ZT23080AT

2082HBL

50/60

220/240

0.07/0.07

14/13.5

2450/2900

18/22

0.13/0.19

30/34.5

Weight : 260 g

B : Ball S : Sleeve

Frame: Die-cast Aluminum

8038 : 80x80x38mm

Model

P/N

VAC

Bearing

AMP

Watts

RPM

CFM

Inch-H₂O

dBA

ZT11580A

1083HSL

50/60

115

0.15/0.13

14/12

2300/2750

23/30

0.12/0.18

31/35

ZT11580A

1083HBL

50/60

115

0.15/0.13

14/12

2400/2850

24/31

0.13/0.19

32/36.5

ZT23080A

2083HSL

50/60

220/240

0.07/0.06

14/13.5

2300/2750

23/30

0.12/0.18

31/35

ZT23080A

2083HBL

50/60

220/240

0.07/0.06

14/13.5

2400/2850

24/31

0.13/0.19

32/36.5

Weight : 340 g

B : Ball S : Sleeve

Frame: Die-cast Aluminum

9225 : 92x92x25mm

Model

P/N

VAC

Bearing

AMP

Watts

RPM

CFM

Inch-H₂O

dBA

ZT11592A

1092HSL

50/60

115

0.12/0.11

13/12

2250/2750

29/36

0.12/0.18

36/39

ZT11592A

1092HBL

50/60

115

0.12/0.11

13/12

2350/2850

30/37

0.13/0.19

37/40

ZT23092A

2092HSL

50/60

220/240

0.07/0.06

14.5/14

2250/2750

29/36

0.12/0.18

36/39

ZT23092A

2092HBL

50/60

220/240

0.07/0.06

14.5/14

2350/2850

30/37

0.13/0.19

37/40

Weight : 280 g

B : Ball S : Sleeve

Frame: Die-cast Aluminum

12025 : 120x120x25mm

Model

P/N

VAC

Bearing

AMP

Watts

RPM

CFM

Inch-H₂O

dBA

ZT103AT

1122LSL

50/60

115

0.14/0.13

14/13

1600/1800

46/53

0.11/0.12

35/38

ZT103AT

1122LBL

50/60

115

0.14/0.13

14/13

1700/1900

47/54

0.12/0.13

37/40

ZT203AT

2122LSL

50/60

220/240

0.07/0.07

14/13

1600/1800

46/53

0.11/0.12

35/38

ZT203AT

2122LBL

50/60

220/240

0.07/0.07

14/13

1700/1900

47/54

0.12/0.13

37/40

ZT101AT

1122HSL

50/60

115

0.19/0.18

19/18

2000/2200

64/77

0.13/0.15

43/45

ZT101AT

1122HBL

50/60

115

0.19/0.18

19/18

2150/2300

66/78

0.14/0.16

44/46

ZT201AT

2122HSL

50/60

220/240

0.09/0.09

19/18

2000/2200

64/77

0.13/0.15

43/45

ZT201AT

2122HBL

50/60

220/240

0.09/0.09

19/18

2150/2300

66/78

0.14/0.16

44/46

Weight : 330 g

B : Ball S : Sleeve

Frame: Die-cast Aluminum

12038 :120x120x38mm

Model

P/N

VAC

Bearing

AMP

Watts

RPM

CFM

Inch-H₂O

dBA

ZT103A

1123LSL

50/60

115

0.13/0.11

11/11

2000/2200

70/76

0.08/0.12

36/38

ZT103A

1123LBL

50/60

115

0.13/0.11

11/11

2150/2300

72/78

0.09/0.13

37/39

ZT203A

2123LSL

50/60

220/240

0.08/0.06

10/10

2000/2200

70/76

0.08/0.12

36/38

ZT203A

2123LBL

50/60

220/240

0.08/0.06

10/10

2150/2300

72/78

0.09/0.13

37/39

ZT101A

1123HSL

50/60

115

0.21/0.18

20/18

2550/2900

85/105

0.25/0.30

43/48

ZT101A

1123HBL

50/60

115

0.21/0.18

20/18

2750/3050

87/107

0.26/0.32

45/50

ZT201A

2123HSL

50/60

220/240

0.125/0.11

20/19

2550/2900

85/105

0.25/0.30

43/48

ZT201A

2123HBL

50/60

220/240

0.125/0.11

20/19

2750/3050

87/107

0.26/0.32

45/50

ZT100A

1123XSL

50/60

115

0.26/0.24

22/20

2700/3100

95/115

0.33/0.38

44/49

ZT100A

1123XBL

50/60

115

0.26/0.24

22/20

2850/3150

97/117

0.34/0.39

45/50

ZT200A

2123XSL

50/60

220/240

0.14/0.12

22/21

2700/3100

95/115

0.33/0.38

44/49

ZT200A

2123XBL

50/60

220/240

0.14/0.12

22/21

2850/3150

97/117

0.34/0.39

45/50

Weight : 550 g

B : Ball S : Sleeve

Frame: Die-cast Aluminum

*MOTOR*	:	Reliable Shaded-Pole Motor Construction
*FRAME*	:	Die-Cast aluminum painted black for moisture and corrosion resistance
*IMPELLER*	:	Injection molded non-flack thermoplastic UL 94V-O Rating
*BEARING*	:	Precision, life-lubricated ball bearing system Precision, oil-impregnated sintered sleeve bearing system
*INSULATION*	:	Class B integral ground system rated @ 120°C
*INSULATION RESISTANCE*	:	500 Megohms minimum at 500VDC
*DIELECTRIC STRENGTH*	:	1500VAC for one minute
*SAFETY PROTECTION*	:	Impedance protected
*OPERATING TEMPERATURE*	:	-10 to +70 °C
*STORAGE TEMPERATURE*	:	-40 to +70°C
*OPERATING VOLTAGE*	:	For 115V, ranged voltage from 85V to 125V. For 220V, ranged voltage from 185V to 245V.
*PROFESSIONAL DESIGN*	>	Should you need to enlarge operating range or have any other special requirements. We are willing to design accordingly.
