ZJTEX ELECTRIC MOTOR
YDKF Series Motor for Cold Drinker

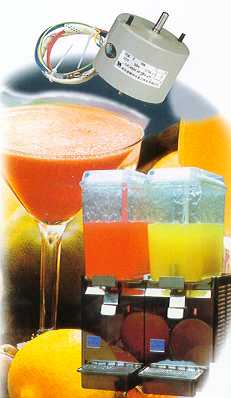

m04-1a.jpg (12695 bytes) This YDKF series is for the cold drinker machine like cold juice,with totally enclosed frame and housing,compact design,low noise,low vibration,and reliable operation.

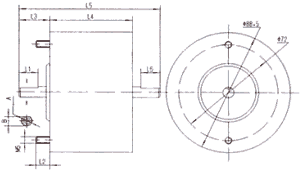

Mounting Arrangements

Model  L1 L2 L3 L4 L5 L6 A B
YDK.F10-4 18 10 23 60 83 / 8 7
YDK.F15-4 18 10 23 65 83 / 8 7
YDK.F15-4A 10 10 20 65 85 / 8 8
YDK.F25-4 18 10 23 84 107 / 8 7
YDK.F10-4S 18 10 23 60 105 15 8 7
YDK.F15-4S 18 10 23 65 130 18 8 7
YDK.F25-4S 18 10 23 84 22.5 22.5 8 7


Technical data:
Model
Power
W
Volts.
V
Freq.
Hz
Current
A
Speed
r/min
Capacitor
m F/450V
YDK.F10-4
10
220
50
0.15
1300
1
YDK.F15-4
15
220
50
0.2
1300
1.5
 YDK.F15-4A
15
220
50
0.2
1300
1.5
YDK.F25-4
25
220
50
0.3
1300
2
 YDK.F10-4S
10
    220
50
0.15
1300
1
YDK.F15-4S
15
 220
50
0.2
1300
1.5
 YDK.F25-4S
25
220
50
0.3
1300
2
