ZJTEX ELECTRIC MOTOR

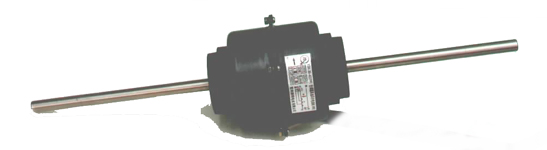

Motor for Roof Type
I. Description
          This type YSK-35-4 of motor is new-made and used specially ceiling exposed spilt air conditioner's outdoor fan (cooling & heating). The motor teature compact resistant, low noise (used NSK ball bearing), low vibration, high efficiency and overload and thermally protected.

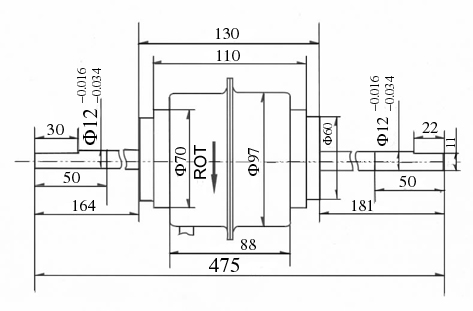

II. Dimensions, Mounting size

8 copy.jpg (46487 bytes)

III. Specifications

Model Nominal power (w) Speed with full load (RPM) No-load noise [dB(A)] Capacitance (uF/V)
YSK-35-4 35 1350/1200/1050/850 <=44 2/450

IV. Application and Maintenance
1. Wires shall be Conneeted as per wiring diagram.
2. Motors shall be stored in clean air fiowing storage with ambinet temperature of -10 centigrade degree-40 centigrade degree, huidity no greater than 75%.
