ZWW53 SERIES DC BRUSHLESS EXTERNAL ROTOR MOTOR |

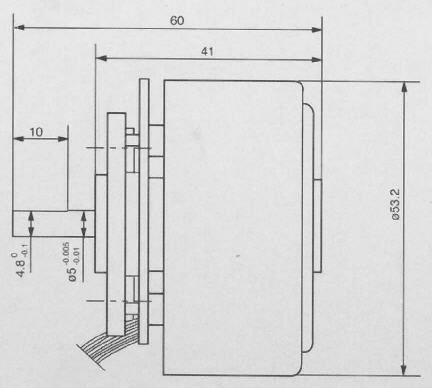

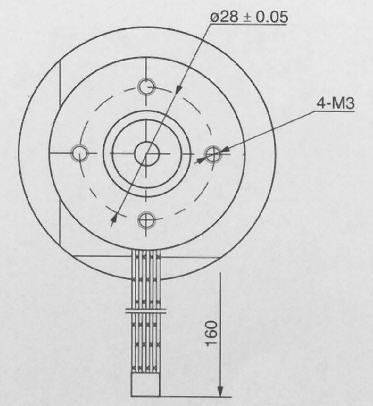

Outline Drawing:
 |
 |
Technical Specification:
| Technical Data | ZWW53-1 | ZWW53-2 |
| Rated Power(w) | 8 | 18 |
| Rated voltage(V) Vm | 12 | 24 |
| Rated voltage(V) Vcc | 6-12 | 6-12 |
| Rated current(A) | 1.1 | 0.8 |
| Rated Speed(rpm) | 6200 | 2500 |
| Insulation Class | B | B |
| Ambient temprerature(centigrade degree) | -20~+40 | -20~+40 |
| Ambient RH(%) | Max 90 | Max 90 |
| Weight(kg) | 0.25 | 0.25 |
Note:This motor must use external controller.
