ZW90C-2 SERIES DC BRUSHLESS MOTOR |

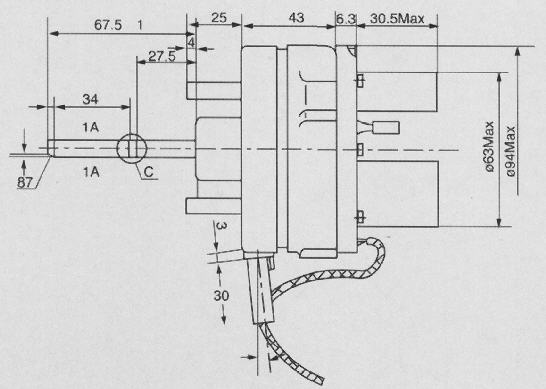

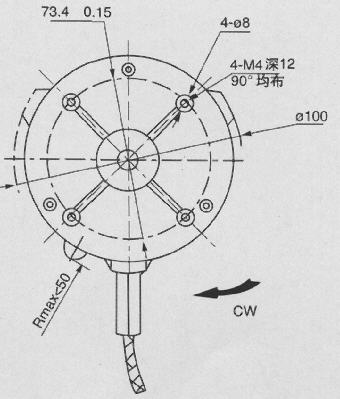

Outline Drawing:
 |
 |
Technical specification:
| Type | ZW90C-2 |
| Duty | Continuous |
| Voltage Range | AC180V-250V,50Hz |
| Rated output power | 10W |
| Rated Voltage | AC230V,50HZ |
| Rated Current | 0.2A |
| Speed | 60-450rpm |
| Bearing | Ball Bearing |
| Speed regulation | stepless |
| Rotation | CW |
| Operation temperature(centigrade degree) | -10~+40 |
| Storage temperature(centigrade degree) | -30~+80 |
Note:This motor has integrated driver.
