ZW90-8 SERIES DC BRUSHLESS MOTOR |

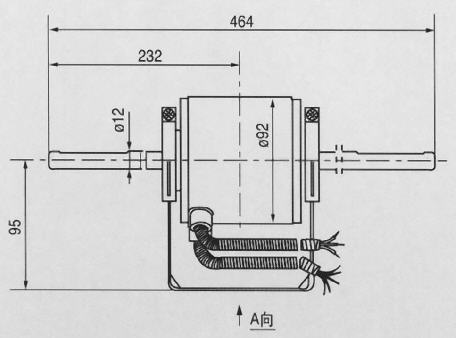

Outline Drawing:
 |
 |
Technical specification:
| Type | ZW90-8A | ZW90-8B | ZW90-8C |
| Rated power | 60W | 90W | 50W |
| Rated Voltage Vm | 300VDC | 36VDC | 24VDC |
| Rated Voltage Vcc | 6-12V | 6-12V | 6-12V |
| Rated current | 0.28A | 3.3A | 2.8A |
| Rated speed | 1400rpm | 1600rpm | 1000rpm |
| Bearing | Ball bearing | Ball Bearing | Ball bearing |
| Insulation class | B | B | B |
| Ambient RH% | 90max. | 90max | 90max |
| Operation temperature(centigrade degree) | -20~+40 | -20~+40 | -20~+40 |
| Storage temperature(centigrade degree) | -40~+85 | -40~+85 | -40~+85 |
| Protection class | IP44 | IP44 | IP44 |
Note:This motor need external driver.
