ZW85 SERIES DC BRUSHLESS MOTOR |

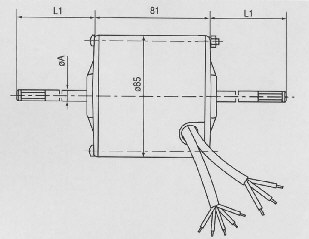

Outline Drawing:
Technical specification:
| Type | ZW85-1 | ZW85-2 |
| Rated power | 120W | 90W |
| Rated Voltage | 24VDC | 24VDC |
| Rated current | 7A | 5A |
| Rated speed | 3000rpm | 3900 |
| Bearing | Ball bearing | Ball Bearing |
| Insulation class | B | B |
| Ambient RH% | 90max. | 90max |
| Operation temperature(centigrade degree) | -20~+55 | -20~+55 |
| Storage temperature(centigrade degree) | -40~+85 | -40~+85 |
| L1(mm) | 79.5 | 93.5 |
| diameter A(mm) | 7.6 | 8 |
Note:This motor need external driver.
