ZW100-2(3) DC BRUSHLESS MOTOR |

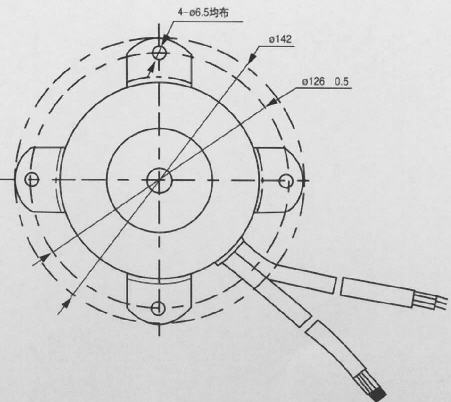

ZW100-2 Outline Drawing:
 |
 |
Technical specification:
| Type | ZW100-2 |
| Rated power | 100W |
| Vm | 110VDC |
| Vcc | 6-12VDC |
| Rated current | 1.4A |
| Rated speed | 4000rpm |
| Bearing | Ball bearing |
| Insulation class | B |
| Protection class | IP44 |
| Ambient RH% | 90max. |
| Operation temperature(centigrade degree) | -20~+40 |
| Storage temperature(centigrade degree) | -40~+85 |
ZW100-3 Outline Drawing:
 |
 |
Technical specification:
| Type | ZW100-3 |
| Rated Power | 80W |
| Vm | 300VDC |
| Vcc | 6-12VDC |
| Rated current | 0.36A |
| Rated speed | 1050rpm |
| Bearing | Ball bearing |
| Insulation class | B |
| Protection class | IP44 |
| Ambient RH% | 90max. |
| Operation temperature(centigrade degree) | -20~+40 |
| Storage temperature(centigrade degree) | -40~+85 |
Note:This motor need external driver.
