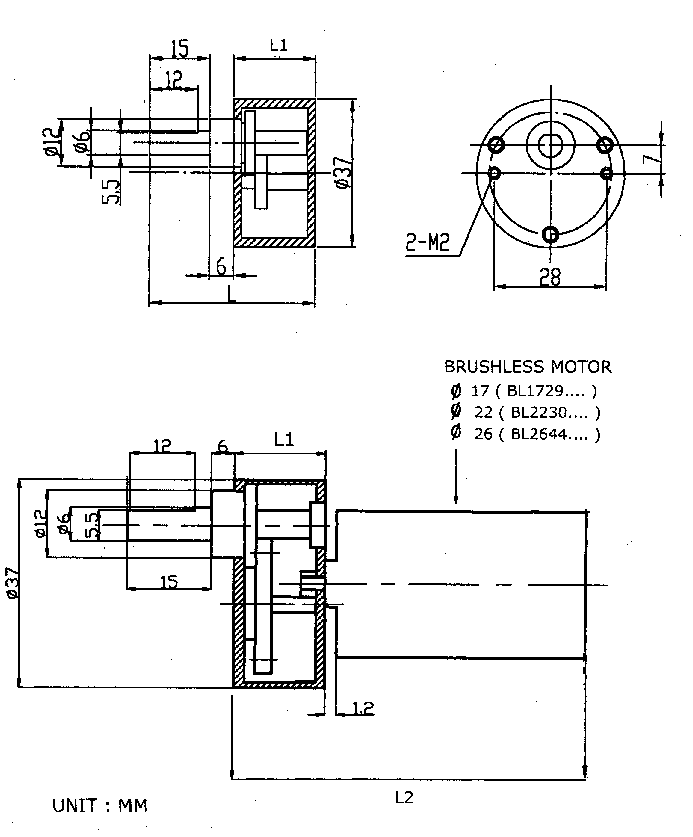

BRUSHLESS SERVO GEAR MOTOR |
| Reduction Ratio | Length without Motor
(mm) |
Length with Motor (mm) | Outpur Torque
kg-cm Max. |
Efficiency | |||
|---|---|---|---|---|---|---|---|
| BL1729.. | BL2230.. | BL2644.. | Continuous
Operation |
Intermittent
Operation |
|||
| 6 : 1 | 15 | 45.6 | 45.6 | 60.7 | 1.0 | 3.0 | 81 % |
| 10 : 1 | 15 | 45.6 | 45.6 | 60.7 | 1.0 | 3.0 | 81 % |
| 15 : 1 | 16 | 46.6 | 46.6 | 61.7 | 1.0 | 3.0 | 73 % |
| 20 : 1 | 16 | 46.6 | 46.6 | 61.7 | 1.0 | 3.0 | 73 % |
| 25 : 1 | 16 | 46.6 | 46.6 | 61.7 | 1.0 | 3.0 | 73 % |
| 30 : 1 | 16 | 46.6 | 46.6 | 61.7 | 1.0 | 3.0 | 73 % |
| 33 : 1 | 16 | 46.6 | 46.6 | 61.7 | 1.0 | 3.0 | 73 % |
| 40 : 1 | 20 | 50.6 | 50.6 | 65.7 | 2.0 | 6.0 | 73 % |
| 45 : 1 | 20 | 50.6 | 50.6 | 65.7 | 2.0 | 6.0 | 73 % |
| 50 : 1 | 20 | 50.6 | 50.6 | 65.7 | 2.0 | 6.0 | 73 % |
| 60 : 1 | 20 | 50.6 | 50.6 | 65.7 | 2.0 | 6.0 | 73 % |
| 70 : 1 | 20 | 50.6 | 50.6 | 65.7 | 3.0 | 9.0 | 66 % |
| 83 : 1 | 20 | 50.6 | 50.6 | 65.7 | 3.0 | 9.0 | 66 % |
| 90 : 1 | 20 | 50.6 | 50.6 | 65.7 | 3.0 | 9.0 | 66 % |
| 100 : 1 | 20 | 50.6 | 50.6 | 65.7 | 3.0 | 9.0 | 66 % |
| 110 : 1 | 20 | 50.6 | 50.6 | 65.7 | 3.0 | 9.0 | 66 % |
| 120 : 1 | 20 | 50.6 | 50.6 | 65.7 | 3.0 | 9.0 | 66 % |
| 130 : 1 | 20 | 50.6 | 50.6 | 65.7 | 3.0 | 9.0 | 66 % |
| 140 : 1 | 20 | 50.6 | 50.6 | 65.7 | 3.0 | 9.0 | 66 % |
| 150 : 1 | 20 | 50.6 | 50.6 | 65.7 | 3.0 | 9.0 | 66 % |
| 170 : 1 | 20 | 50.6 | 50.6 | 65.7 | 3.0 | 9.0 | 66 % |
| 180 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 66 % |
| 185 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 66 % |
| 200: 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 66 % |
| 215 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 66 % |
| 280 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 66 % |
| 300 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 66 % |
| 400 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 59 % |
| 425 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 59 % |
| 450 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 59 % |
| 470 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 59 % |
| 500 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 59 % |
| 600 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 53 % |
| 750 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 53 % |
| 1,000 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 53 % |
| 1,500 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 48 % |
| 3,000 : 1 | 23.5 | 54.1 | 54.1 | 69.2 | 6.0 | 18.0 | 48 % |
