ZJTEX ELECTRIC MOTOR
FH SERIES TANGENTIAL FAN W/ BRUSHLESS MOTOR



FH06 SERIES :

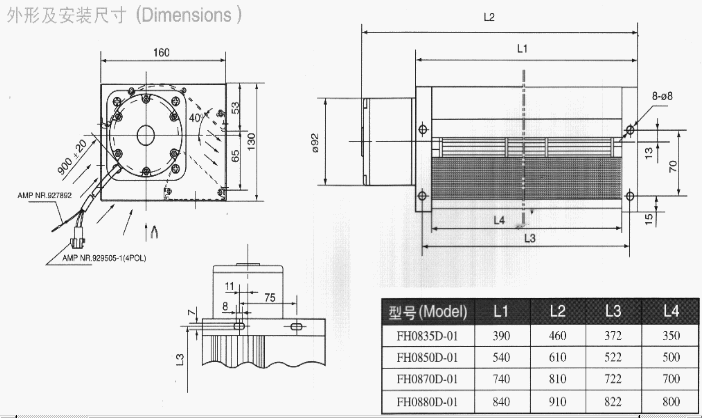

Dimensions:		 Features:
1.Aluminium impeller,aluminium section conductor elements
2.Use external rotor brushless DC motors,life over 20000hours

Typical application:
1.Bus air conditioner blowers
2.Cooling of electronic equipment


FH08 SERIES:
Features:
1.Aluminium impeller,aluminium section conductor elements
2.Use  brushless DC motors,life over 20000hours

Typical application:
1.Bus air conditioner blowers
2.Cooling of electronic equipment


Model
Voltage(V)
Current(A)
Input power(W)
Rated load speed(r/min)
Air volume(m³/h)
Noise[dB(A)]
Curve
FH0835D-01
24
1.0
24
1400
420
55
1
FH0850D-01
24
1.3
32
1380
585
56
2
FH0870D-01
24
1.6
38.5
1400
820
56
3
FH0880D-01
24
1.8
43
1350
890
55
4
