ZWW92-1C DC BRUSHLESS EXTERNAL ROTOR MOTOR |

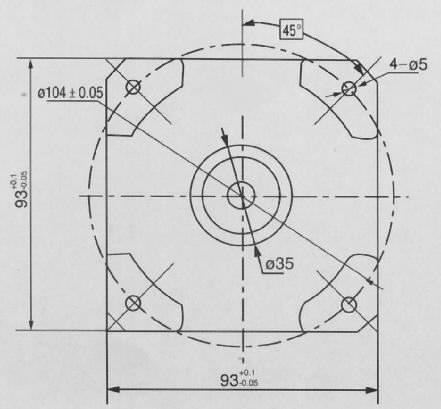

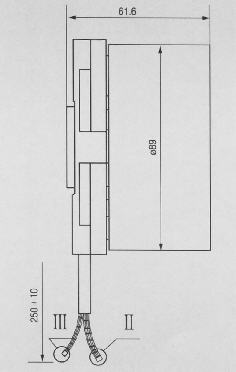

Outline Drawing:
 |
 |
Technical Specification:
| Model | ZWW92-1C |
| Insulation class | B |
| Duty cycle | Continuous |
| Rated Voltage
Vm DCV
Vcc DCV |
150
6-12 |
| Rated output power | 60w |
| Rated current | 0.75A |
| Rated speed | 1000rpm |
| Rotation | CW/CCW |
| WorkingAmbient temperature(centigrade degree) | -20~+40 |
| Ambient RH(%) | Max .90 |
Note:This motor need external driver.
