EXTERNAL ROTOR MOTOR
|
ZWW53F SERIES DC BRUSHLESS
EXTERNAL ROTOR MOTOR |

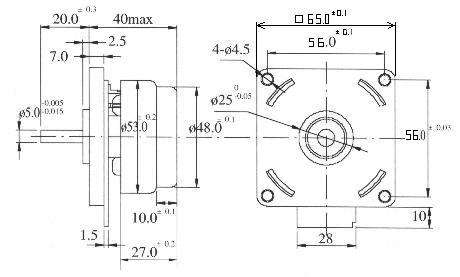

Outline Drawing:
 |
Technical Specification:
| Model | ZWW53F |
| Phase | 3 |
| Poles | 4 |
| Rated Voltage | 12VDC |
| No load speed | 5350rpm |
| No load current | 0.5A |
| Rated Torque(N.m) | 0.018 |
| Rated current | 1.5A |
| Rated speed | 4400rpm |
| Leads Connector | AMP |
| Rotation | CW/CCW |
| Ambient temperature(centigrade degree) | -40~+55 |
| Ambient Related Humidity | 20-95% |
| Storage Related Humidity | 20-85% |
| Insulation resistance | 100Mohm |
| Dielectric strength | 1min,500VAC,50HZ |
| Life | 10000hrs |
| Insulation class | B |
| Weight | 0.25kg |
