DC BRUSHLESS MOTOR
|
ZWW35-1 EXTERNAL ROTOR
DC BRUSHLESS MOTOR |

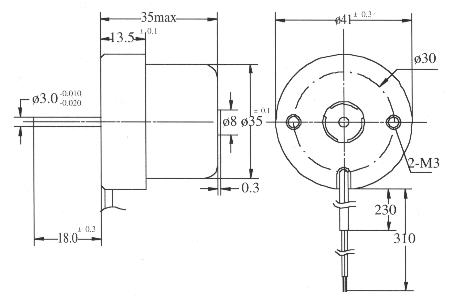

Outline Drawing:
 |
 |
Technical specification:
| Type | ZWW35-1 |
| Phase | 2 |
| Poles | 4 |
| No load speed | 8000rpm |
| No load current | 0.08A |
| Rated Voltage | 48VDC |
| Rated current | 0.19A |
| Rated torque | 0.0095Nm |
| Rated speed | 3900rpm |
| Leads connector | AMP |
| Rotation direction | CCW |
| Insulation class | B |
| Ambient RH% | 95max. |
| Operation temperature(centigrade degree) | -40~+55 |
| Insulation Resistance | 100Mohm |
| Dielectric strength | 1min ,500VAC,50Hz |
| Life | 10000Hrs |
| Weight | 0.1kg |

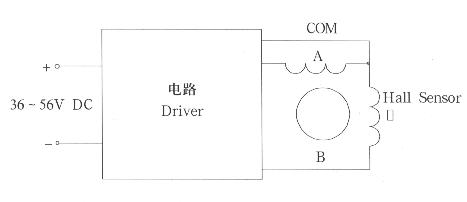

Note:This motor need external driver.
