ZWW102-1A DC BRUSHLESS EXTERNAL ROTOR MOTOR |

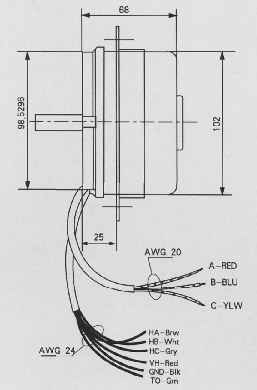

Outline Drawing:
 |
 |
Technical Specification:
| Model | ZWW102-1A |
| Bearing | Ball bearing |
| Duty cycle | Continuous |
| Rated Voltage Vm | 300VDC from driver |
| Rated output power | 150W |
| Rated speed | 1000rpm |
| Rotation | CW/CCW |
| WorkingAmbient temperature(centigrade degree) | -20~+40 |
| Store Ambient temperature(centigrade degree) | -40~+80 |
| Weight | 2KG |
Note:This motor need external driver.
