ZWW102-1 EXTERNAL ROTOR DC BRUSHLESS MOTOR |

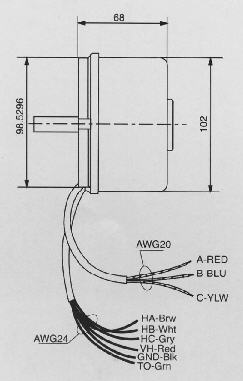

Outline Drawing:
 |
 |
Technical Specification:
| Model | ZWW102-1 |
| Bearing | Ball bearing |
| Duty cycle | Continuous |
| Working voltage | 300VDC supplied from controller |
| Rated Voltage Vm | 300VDC |
| Rated output power | 200W(250W) |
| Rated speed | 1500rpm |
| Rotation | CW/CCW |
| WorkingAmbient temperature(centigrade degree) | -20~+40 |
| Store Ambient temperature(centigrade degree) | -40~+80 |
| Weight | 2KG |
