ZW57 SERIES DC BRUSHLESS MOTOR |

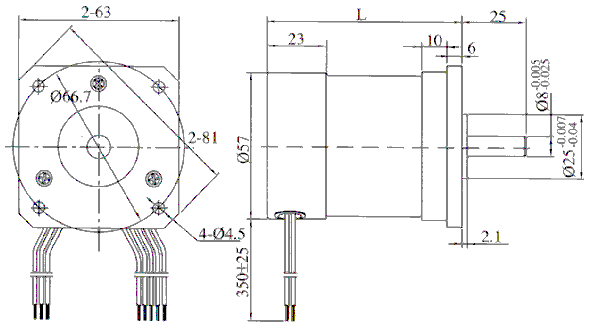

Outline Drawing:
 |

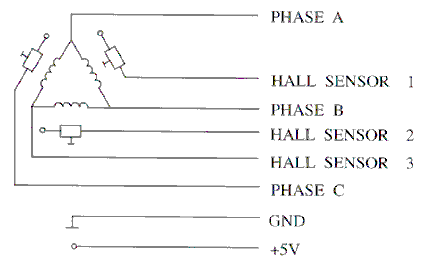

Wiring Diagram:
 |
General Specification:
| Phase | 3 |
| Temperature | 80 centigrade degree max. |
| Ambient Temperature Range | -20~+50 centigrade degree |
| Insulation Resistance | 100Mohm Min.500VDC |
| Dielectric Strength | 500VAC 1 minute |
| Radial play | 0.02mm Max(450g load) |
| End play | 0.08mm Max.(450g Load) |
Performance&Specifications:
| ZW57 Model | Motor Length
(mm) |
Max.Torque
(N.cm) |
Rated Voltage
(V) |
Rated Speed
(rpm) |
Rated Torque
(N.cm) |
Rated Power
(W) |
Torque constant
(Nm/adc) |
Phase Resistance
(ohm) |
Motor Weight
(kg) |
Rotor Inertia
(g.cm^2) |
| ZW570801 | 56 | 35 | 36 | 3400 | 12 | 48 | 0.05 | 3.5 | 0.5 | 75 |
| ZW1801 | 76 | 68 | 36 | 3400 | 22 | 95 | 0.05 | 1.6 | 0.75 | 119 |
| ZW2801 | 96 | 98 | 36 | 3400 | 32 | 140 | 0.05 | 1.0 | 1.0 | 173 |
