DIA.77mm single inlet
|
FL077032D-01 BLOWER WITH DC BRUSHLESS MOTOR
DIA.77mm single inlet |

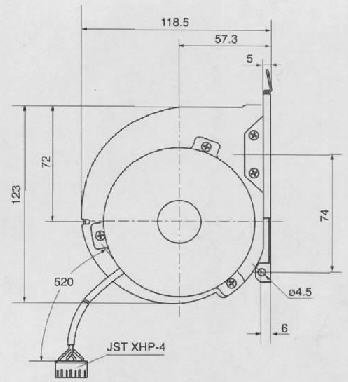

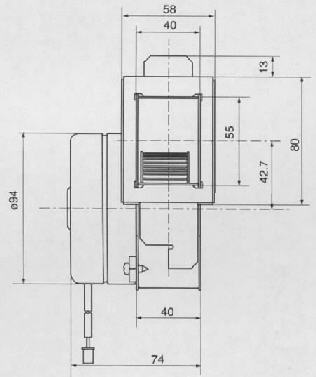

Outline Drawing:
 |
 |

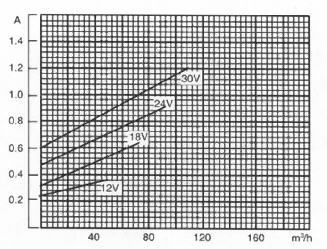

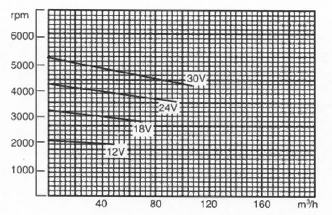

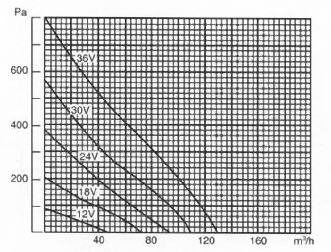

Performance Curve :
 |
 |
 |
Technical specification:
| Type | FL077032D-01 |
| Duty | Continuous |
| Vm | 0-37VDC |
| Vcc | 12v+_1VDC(50mA) |
| Rated Vm | 36VDC |
| Rated speed | 4850rpm |
| Rated Im | 1.5A |
| Air volume | 125 CBM/H |
| Operating from (Pa) | 30 |
| FG | 2Puls/Rev |
| Bearing | Ball bearing |
| Socket | JST XHP-4 |
| Lead | AWG22 UL1007 |
| Operation temperature(centigrade degree) | -20~+60 |
| Storage temperature(centigrade degree) | -40~+80 |
Note:This blower have internal driver.
