FL-145 SERIES DOUBLE INLET CENTRIFUGAL BLOWER WITH EXTERNAL ROTOR DC BRUSHLESS MOTOR |

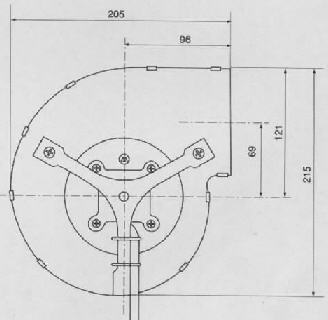

Outline Drawing:
 |
 |

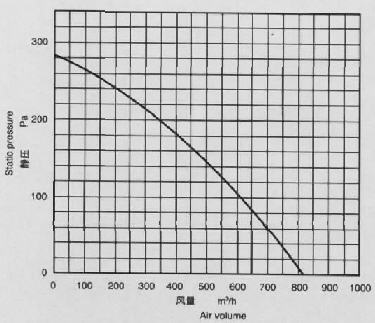

Volume-Static pressure curves:
Technical specification:
| Type | FL-145190D-01 | FL-145190D-02 |
| Rated voltage | 24V | 48V |
| Voltage range | 16-28V | 36-56V |
| Current | 2.8A | 1.5A |
| Speed | 1100rpm | 1100rpm |
| Motor type | ZWW92-1 | ZWW92-1 external rotor BLDC motor |
| Air volume | 820CBM/Hr | 820CBM/Hr |
| Operating from (Pa) | 0 | 0 |
| Amb.temp range | -20~+60 | -20~+60 centigrade degree |
