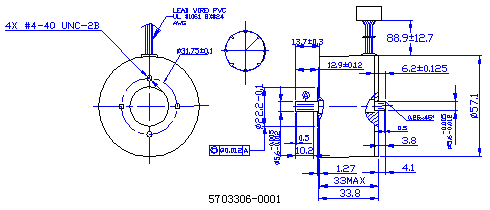

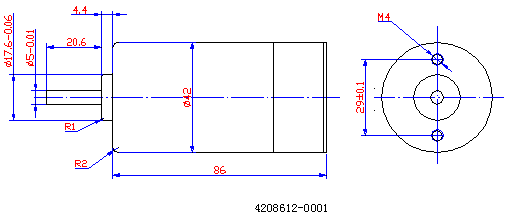

Other General Usage Brushles DC Motor   Model Rated Voltage No-load Rated Operation Stall Operation Voltage Range Speed Current  Speed  Current  Torque  Current Torque V r/min A r/min A g.cm OZ-IN A g.cm OZ-IN V 3606812-0001 12 7800 0.5 6600 2.0 230 3.2 11.0 1515  21  ¡¡ 6-48 3606812-0002 24 6200 0.14 4520 1.33 450 6.25 4.65 1670 23.2 6-48       Model Rated Voltage No-load Rated Operation Stall Operation Voltage Range Speed Current  Speed  Current  Torque  Current Torque V r/min A r/min A g.cm OZ-IN A g.cm OZ-IN V 4208612-0001 12 4800 0.5 3800 2.2 500 6.9 11.5 2400 33.3 6-48 4208612-0002 24 5830 0.2 4300 2 660 9.4 7.1 2592 36 6-48     Model Rated Voltage No-load Rated Operation Stall Operation Voltage Range Speed Current  Speed  Current  Torque  Current Torque V r/min A r/min A g.cm OZ-IN A g.cm OZ-IN V 5703306-0001 10 13000 0.7 7500 3 154 2.14 6.1 367 5.1 5-16   Model Rated Voltage No-load Rated Operation Stall Operation Voltage Range Speed Current  Speed  Current  Torque  Current Torque V r/min A r/min A g.cm OZ-IN A g.cm OZ-IN V 6309112-0001 24 4200 0.3 2800 5.5 3250 45 22 9800 136 6-38           Model Rated Voltage No-load Rated Operation Stall Operation Voltage Range Speed Current  Speed  Current  Torque  Current Torque V r/min A r/min A g.cm OZ-IN A g.cm OZ-IN V 7608812-0001 24 2500 0.2 1900 1.8 1224 17 7.0 5184 72 6-48   Model Rated Voltage No-load Rated Operation Stall Operation Voltage Range Speed Current  Speed  Current  Torque  Current Torque V r/min A r/min A g.cm OZ-IN A g.cm OZ-IN V 9509112-0001 39 2120 0.6 1900 2.8 3000 41.7 17 25000 347.2 6-48  ZWHT Series General Brushless DC motors model Rated Input Power(w) Rated Voltage(v) Working Voltage Range(v)  Rated Current(a) Rated Speed(r/min)  Protection Grade of The Enclosure Efficiency(%) B (mm) ZWHT120-3-4 120 48 32-65 3.1  1500 IP44 80  90 ZWHT 180-3-4 180 48 32-65 4.5 3000 IP44 83 90 ZWHT 250-3-4 250 48 32-65 6.3 1500 IP44 83 110 ZWHT300-3-400  300 48 32-65 7.3 3000 IP44 86 110

---

33SW001

---

45SW001


45SW001 motor is used in automatic bank machine like ATM ,money counter etc.   rated voltage no-load rated speed current speed torque curretn efficiency V rpm A rpm N.m A % 24 5730±7% 0.35 4700 0.035 1.25 57
